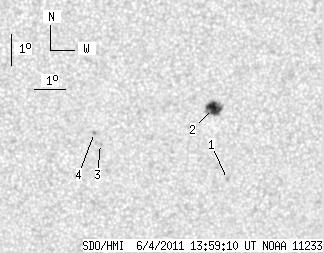

SDO HMI 2011-06-04 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.11 | 21.79 | 7.48 | 11.56 | -18.38 | 27.00 | 10.68 | 209.48 | 0.3591 | 657.3 | 288.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | -20.44 | 27.97 | 11.65 | 208.78 | 0.3948 | 864.0 | 686.4 | |
| 14.11 | 18.26 | 7.48 | 9.69 | -18.15 | 27.35 | 11.03 | 210.64 | 0.3583 | 1038.6 | 734.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.28 | 23.73 | 7.42 | 200.53 | 0.3490 | -735.0 | -681.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.92 | 23.52 | 7.21 | 200.37 | 0.3424 | -1010.0 | -823.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
