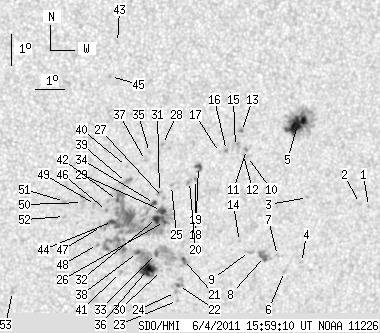

SDO HMI 2011-06-04 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.78 | 416.91 | 31.20 | 236.91 | -22.02 | 35.27 | 20.06 | 220.56 | 0.4916 | 122.4 | -21.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.86 | -22.01 | 41.84 | 26.63 | 228.26 | 0.5590 | 657.0 | 501.9 | |
| 0.00 | 1.99 | 0.00 | 1.18 | -21.92 | 41.49 | 26.28 | 228.05 | 0.5544 | 563.0 | 494.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -21.72 | 39.57 | 24.35 | 226.31 | 0.5319 | 724.0 | 574.7 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -23.86 | 39.76 | 24.55 | 223.49 | 0.5541 | 634.0 | 431.6 | |
| 15.91 | 68.44 | 9.10 | 39.16 | -19.36 | 38.81 | 23.60 | 229.11 | 0.5017 | 1159.1 | 431.5 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -24.16 | 39.20 | 23.99 | 222.47 | 0.5515 | 650.0 | 519.6 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -23.63 | 38.84 | 23.63 | 222.78 | 0.5427 | 795.0 | 526.7 | |
| 0.00 | 9.67 | 0.00 | 5.68 | -23.67 | 38.38 | 23.16 | 222.20 | 0.5384 | 842.0 | 713.5 | |
| 0.00 | 3.53 | 0.00 | 2.06 | -23.50 | 37.80 | 22.59 | 221.76 | 0.5311 | 622.0 | 660.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -20.39 | 37.22 | 22.01 | 225.58 | 0.4937 | 706.0 | 547.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -20.16 | 37.15 | 21.94 | 225.85 | 0.4907 | 895.0 | 746.8 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -20.33 | 37.07 | 21.86 | 225.50 | 0.4914 | 772.0 | 547.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -19.58 | 36.89 | 21.68 | 226.45 | 0.4821 | 1100.0 | 945.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -23.17 | 37.39 | 22.18 | 221.71 | 0.5235 | 756.0 | 568.0 | |
| 0.00 | 7.77 | 0.00 | 4.40 | -20.07 | 36.75 | 21.54 | 225.50 | 0.4854 | 549.0 | 596.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -20.20 | 36.46 | 21.24 | 224.93 | 0.4835 | 893.0 | 721.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.26 | 36.22 | 21.01 | 224.52 | 0.4816 | 553.0 | 458.7 | |
| 3.07 | 4.70 | 1.73 | 2.65 | -20.72 | 35.56 | 20.34 | 222.94 | 0.4793 | 879.4 | 711.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -21.14 | 35.51 | 20.30 | 222.24 | 0.4833 | 604.0 | 448.6 | |
| 0.00 | 2.98 | 0.00 | 1.68 | -21.21 | 35.31 | 20.10 | 221.88 | 0.4819 | 930.0 | 709.1 | |
| 1.08 | 34.44 | 0.62 | 19.76 | -23.77 | 35.50 | 20.28 | 218.50 | 0.5116 | 746.5 | 50.0 | |
| 0.72 | 7.68 | 0.42 | 4.45 | -24.64 | 35.46 | 20.25 | 217.32 | 0.5209 | -723.0 | -550.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -25.14 | 35.51 | 20.30 | 216.75 | 0.5270 | -681.0 | -475.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -24.87 | 35.39 | 20.18 | 216.94 | 0.5229 | -699.0 | -569.9 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.34 | 34.71 | 19.50 | 220.85 | 0.4772 | 744.0 | 552.7 | |
| 1.18 | 173.22 | 0.67 | 97.74 | -22.52 | 34.63 | 19.42 | 219.05 | 0.4895 | 611.2 | -163.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.73 | 34.48 | 19.27 | 219.96 | 0.4793 | 756.0 | 569.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -20.01 | 34.22 | 19.01 | 222.18 | 0.4577 | -942.0 | -694.6 | |
| 5.06 | -26.00 | 2.86 | -26.00 | -22.15 | 34.48 | 19.26 | 219.34 | 0.4840 | 976.4 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -24.14 | 34.78 | 19.56 | 217.06 | 0.5091 | -366.0 | -346.0 | |
| 0.00 | 2.53 | 0.00 | 1.42 | -21.57 | 34.32 | 19.11 | 219.97 | 0.4759 | 920.0 | 760.5 | |
| 4.25 | -26.00 | 2.41 | -26.00 | -22.42 | 34.34 | 19.13 | 218.78 | 0.4856 | 927.8 | 999999 | |
| 1.90 | -21.00 | 1.08 | -21.00 | -23.57 | 34.51 | 19.30 | 217.44 | 0.5003 | -673.5 | 999999 | |
| 2.44 | -26.00 | 1.38 | -26.00 | -21.93 | 34.20 | 18.99 | 219.28 | 0.4787 | 866.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -20.27 | 33.81 | 18.60 | 221.18 | 0.4562 | -764.0 | -682.7 | |
| 13.74 | 40.41 | 7.87 | 23.10 | -24.10 | 34.28 | 19.06 | 216.42 | 0.5042 | -980.0 | -411.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.52 | 33.70 | 18.49 | 220.63 | 0.4581 | -933.0 | -749.6 | |
| 2.08 | -36.00 | 1.18 | -36.00 | -23.54 | 33.84 | 18.63 | 216.54 | 0.4937 | 323.4 | 999999 | |
| 0.00 | 5.88 | 0.00 | 3.28 | -21.24 | 33.14 | 17.93 | 218.72 | 0.4606 | -1062.0 | -805.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.72 | 33.08 | 17.87 | 219.39 | 0.4540 | -756.0 | -598.1 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -24.20 | 33.34 | 18.13 | 214.97 | 0.4971 | -834.0 | -645.5 | |
| 1.18 | -26.00 | 0.66 | -26.00 | -21.83 | 32.91 | 17.70 | 217.52 | 0.4652 | -909.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.74 | 32.35 | 17.14 | 224.86 | 0.4017 | -796.0 | -582.4 | |
| 2.17 | -26.00 | 1.22 | -26.00 | -22.52 | 32.83 | 17.61 | 216.44 | 0.4725 | -978.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -17.82 | 32.22 | 17.01 | 222.71 | 0.4122 | -874.0 | -682.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -22.16 | 32.57 | 17.36 | 216.55 | 0.4659 | -999.0 | -869.6 | |
| 0.00 | 3.25 | 0.00 | 1.83 | -22.68 | 32.47 | 17.26 | 215.67 | 0.4712 | -894.0 | -745.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -23.28 | 32.41 | 17.20 | 214.79 | 0.4779 | -701.0 | -655.6 | |
| 0.00 | 3.71 | 0.00 | 2.07 | -21.96 | 32.17 | 16.96 | 216.20 | 0.4599 | -824.0 | -709.4 | |
| 0.00 | 6.15 | 0.00 | 3.42 | -21.90 | 31.72 | 16.50 | 215.58 | 0.4550 | -792.0 | -621.8 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -21.86 | 31.10 | 15.89 | 214.62 | 0.4490 | -864.0 | -742.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.35 | 31.16 | 15.94 | 214.05 | 0.4556 | -626.0 | -499.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -24.84 | 29.66 | 14.45 | 208.58 | 0.4754 | -705.0 | -542.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
