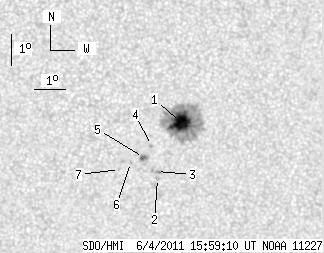

SDO HMI 2011-06-04 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.51 | 131.99 | 11.94 | 70.01 | -20.80 | 19.26 | 4.05 | 190.68 | 0.3583 | 1179.0 | 519.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.89 | 118.52 | 10.54 | 62.81 | -20.66 | 19.36 | 4.15 | 191.01 | 0.3563 | 1368.8 | 504.6 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -22.49 | 18.66 | 3.45 | 188.36 | 0.3837 | 686.0 | 519.1 | |
| 0.00 | 4.43 | 0.00 | 2.37 | -22.26 | 18.62 | 3.41 | 188.36 | 0.3799 | 867.0 | 699.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.41 | 18.44 | 3.22 | 188.26 | 0.3658 | 926.0 | 779.6 | |
| 2.62 | 4.25 | 1.40 | 2.27 | -21.80 | 18.18 | 2.97 | 187.47 | 0.3716 | 995.1 | 619.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -21.97 | 17.76 | 2.55 | 186.36 | 0.3734 | 955.0 | 651.5 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -22.20 | 17.40 | 2.19 | 185.41 | 0.3765 | 718.0 | 529.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
