SDO HMI 2011-06-04 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.61 | 0.00 | 2.99 | 19.97 | 5.50 | -8.61 | 21.77 | 0.3757 | -173.5 | -78.9 | |
|
previous
or next observation for the same group /

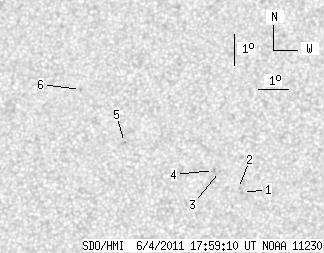

back to the solar disc SDO HMI 2011-06-04 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.76 | 7.69 | -6.41 | 17.96 | 0.3443 | -865.0 | -634.1 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 18.89 | 7.56 | -6.54 | 18.19 | 0.3470 | -416.0 | -487.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 19.44 | 6.92 | -7.18 | 19.27 | 0.3589 | -749.0 | -620.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 19.47 | 6.72 | -7.38 | 19.72 | 0.3604 | -688.0 | -546.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 20.38 | 3.76 | -10.35 | 25.51 | 0.3925 | 789.0 | 604.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 22.12 | 2.16 | -11.94 | 26.72 | 0.4282 | 888.0 | 697.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
