SDO HMI 2011-06-04 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.03 | 144.55 | 16.97 | 90.88 | 9.26 | 337.23 | -36.87 | 74.45 | 0.6167 | -812.4 | -333.2 | |
|
previous
or next observation for the same group /

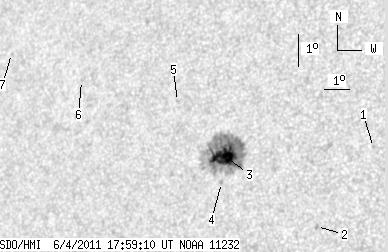

back to the solar disc SDO HMI 2011-06-04 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.64 | 9.50 | 342.80 | -31.30 | 71.73 | 0.5417 | 635.0 | 506.8 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 7.08 | 340.95 | -33.15 | 76.81 | 0.5595 | -806.0 | -651.5 | |
| 27.03 | 136.96 | 16.97 | 86.04 | 9.24 | 337.27 | -36.83 | 74.47 | 0.6163 | -1075.6 | -344.7 | |
| 0.00 | 1.72 | 0.00 | 1.08 | 8.44 | 337.25 | -36.85 | 75.75 | 0.6143 | -737.0 | -587.8 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 10.95 | 335.19 | -38.91 | 72.57 | 0.6486 | -654.0 | -464.2 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 11.62 | 331.12 | -42.98 | 72.95 | 0.7008 | 669.0 | 531.5 | |
| 0.00 | 0.72 | 0.00 | 0.53 | 12.47 | 327.87 | -46.23 | 72.73 | 0.7407 | 485.0 | 400.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
