SDO HMI 2011-06-04 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.41 | 135.35 | 12.44 | 72.03 | -21.01 | 18.76 | 5.21 | 193.60 | 0.3673 | 561.8 | 430.0 | |
|
previous
or next observation for the same group /

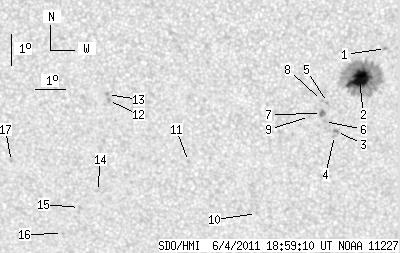

back to the solar disc SDO HMI 2011-06-04 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.76 | -19.69 | 20.21 | 6.66 | 198.18 | 0.3514 | -674.0 | -472.3 | |
| 22.42 | 112.55 | 11.91 | 59.80 | -20.69 | 19.40 | 5.85 | 195.29 | 0.3632 | 1328.6 | 514.2 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -22.39 | 18.71 | 5.16 | 192.46 | 0.3872 | 887.0 | 704.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -22.52 | 18.65 | 5.10 | 192.24 | 0.3890 | 697.0 | 555.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -21.44 | 18.38 | 4.83 | 192.25 | 0.3710 | 794.0 | 779.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.06 | 18.30 | 4.75 | 191.69 | 0.3806 | 809.0 | 604.2 | |
| 0.99 | 3.71 | 0.53 | 1.98 | -21.80 | 18.19 | 4.65 | 191.58 | 0.3761 | 1050.4 | 844.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -21.37 | 18.18 | 4.63 | 191.80 | 0.3693 | 875.0 | 661.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.90 | 17.80 | 4.25 | 190.58 | 0.3765 | 881.0 | 529.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -25.11 | 16.12 | 2.58 | 185.54 | 0.4237 | 727.0 | 587.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -23.38 | 13.84 | 0.29 | 180.68 | 0.3941 | -868.0 | -622.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.37 | 11.22 | -2.33 | 174.00 | 0.3635 | -934.0 | -852.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.18 | 11.19 | -2.36 | 173.86 | 0.3604 | -1149.0 | -926.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -24.37 | 10.80 | -2.75 | 173.90 | 0.4124 | -670.0 | -579.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -24.91 | 10.18 | -3.36 | 172.72 | 0.4219 | -921.0 | -680.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -25.78 | 9.58 | -3.96 | 171.77 | 0.4369 | -701.0 | -565.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -23.38 | 7.96 | -5.58 | 167.18 | 0.4041 | -717.0 | -609.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
