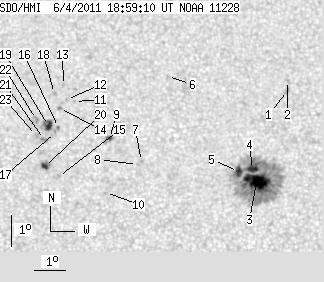

SDO HMI 2011-06-04 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.56 | 228.70 | 23.83 | 119.66 | 17.22 | 19.90 | 6.35 | 340.67 | 0.3227 | -352.8 | -309.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.98 | 0.00 | 1.59 | 19.70 | 22.29 | 8.74 | 337.26 | 0.3719 | -859.0 | -668.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 20.02 | 22.31 | 8.76 | 337.58 | 0.3768 | -673.0 | -525.2 | |
| 24.59 | 180.62 | 12.86 | 94.46 | 16.78 | 21.15 | 7.60 | 336.64 | 0.3208 | -1306.5 | -500.5 | |
| 5.70 | -3.00 | 2.98 | -3.00 | 17.16 | 21.04 | 7.49 | 337.43 | 0.3259 | -1013.8 | 999999 | |
| 5.15 | -3.00 | 2.70 | -3.00 | 17.10 | 20.59 | 7.04 | 338.58 | 0.3221 | -1047.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 20.15 | 18.40 | 4.85 | 347.17 | 0.3594 | -735.0 | -558.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 17.41 | 17.49 | 3.94 | 347.81 | 0.3122 | -794.0 | -577.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 17.32 | 17.36 | 3.82 | 348.13 | 0.3102 | -827.0 | -707.6 | |
| 1.99 | 4.07 | 1.04 | 2.13 | 18.15 | 16.48 | 2.94 | 351.25 | 0.3212 | -871.9 | -317.2 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 16.43 | 16.33 | 2.78 | 350.80 | 0.2924 | -812.0 | -608.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 19.34 | 15.38 | 1.83 | 354.88 | 0.3385 | 851.0 | 682.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 19.40 | 15.12 | 1.57 | 355.61 | 0.3392 | 854.0 | 681.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.86 | 15.03 | 1.48 | 355.97 | 0.3465 | 680.0 | 596.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.11 | 14.89 | 1.34 | 356.19 | 0.3341 | 1035.0 | 830.2 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 16.94 | 14.84 | 1.29 | 355.82 | 0.2980 | 726.0 | 570.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.50 | 14.85 | 1.31 | 356.16 | 0.3240 | 795.0 | 705.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.34 | 14.76 | 1.21 | 356.41 | 0.3212 | 713.0 | 598.7 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 19.60 | 14.73 | 1.18 | 356.72 | 0.3420 | 816.0 | 686.4 | |
| 5.15 | 10.67 | 2.70 | 5.58 | 18.57 | 14.53 | 0.99 | 357.11 | 0.3248 | 1057.1 | 873.4 | |
| 2.98 | 6.33 | 1.55 | 3.29 | 17.25 | 14.40 | 0.85 | 357.31 | 0.3028 | 1105.7 | 789.2 | |
| 0.00 | 2.89 | 0.00 | 1.51 | 18.12 | 14.40 | 0.85 | 357.43 | 0.3172 | 1023.0 | 823.5 | |
| 0.00 | 3.25 | 0.00 | 1.71 | 18.76 | 14.15 | 0.60 | 358.26 | 0.3277 | 912.0 | 744.8 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 18.25 | 14.15 | 0.60 | 358.21 | 0.3192 | 881.0 | 775.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
