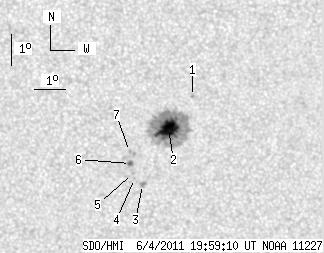

SDO HMI 2011-06-04 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.97 | 132.17 | 11.69 | 70.34 | -20.74 | 19.37 | 6.38 | 196.56 | 0.3664 | 1079.5 | 496.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.62 | -19.62 | 20.17 | 7.18 | 199.55 | 0.3531 | -646.0 | -474.7 | |
| 19.89 | 122.23 | 10.58 | 65.01 | -20.65 | 19.43 | 6.44 | 196.77 | 0.3653 | 1356.8 | 492.8 | |
| 0.00 | 3.53 | 0.00 | 1.90 | -22.48 | 18.65 | 5.66 | 193.56 | 0.3905 | 850.0 | 716.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.28 | 18.38 | 5.39 | 193.05 | 0.3864 | 764.0 | 587.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.12 | 18.31 | 5.32 | 192.99 | 0.3836 | 715.0 | 604.8 | |
| 2.08 | 2.53 | 1.11 | 1.35 | -21.79 | 18.23 | 5.24 | 193.01 | 0.3781 | 961.0 | 975.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -21.40 | 18.18 | 5.19 | 193.15 | 0.3718 | 912.0 | 766.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
