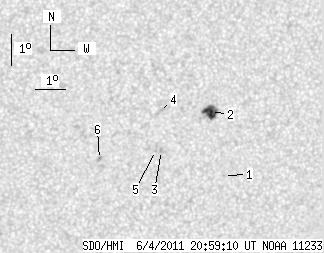

SDO HMI 2011-06-04 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.30 | 25.32 | 6.62 | 13.62 | -18.48 | 26.56 | 14.12 | 216.48 | 0.3911 | 723.0 | 364.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.16 | 27.91 | 15.47 | 216.34 | 0.4244 | 651.0 | 513.7 | |
| 12.30 | 15.28 | 6.62 | 8.23 | -18.10 | 27.28 | 14.84 | 218.47 | 0.3930 | 1027.4 | 729.8 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -19.35 | 25.76 | 13.33 | 213.62 | 0.3945 | 883.0 | 684.1 | |
| 0.00 | 3.71 | 0.00 | 1.98 | -18.10 | 25.60 | 13.16 | 215.24 | 0.3767 | 539.0 | 538.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -19.35 | 25.57 | 13.13 | 213.23 | 0.3927 | 481.0 | 442.1 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -19.64 | 23.74 | 11.30 | 209.08 | 0.3814 | -954.0 | -742.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
