SDO HMI 2011-06-04 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.04 | 124.22 | 13.36 | 66.28 | -20.75 | 19.34 | 7.46 | 199.13 | 0.3722 | 1061.7 | 526.0 | |
|
previous
or next observation for the same group /

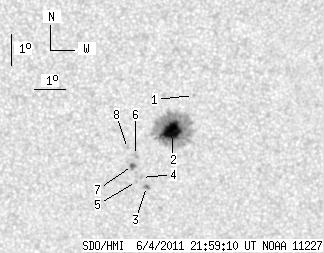

back to the solar disc SDO HMI 2011-06-04 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.51 | 20.10 | 8.22 | 202.22 | 0.3577 | -552.0 | -391.4 | |
| 22.15 | 110.94 | 11.81 | 59.15 | -20.64 | 19.44 | 7.56 | 199.46 | 0.3710 | 1307.4 | 521.3 | |
| 0.63 | 2.35 | 0.34 | 1.27 | -22.47 | 18.71 | 6.82 | 196.19 | 0.3953 | 869.1 | 745.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -22.18 | 18.53 | 6.64 | 196.01 | 0.3900 | 773.0 | 565.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -22.31 | 18.37 | 6.48 | 195.55 | 0.3913 | 769.0 | 542.8 | |
| 0.00 | 3.25 | 0.00 | 1.74 | -21.46 | 18.30 | 6.41 | 196.04 | 0.3778 | 998.0 | 703.1 | |
| 2.26 | 2.89 | 1.21 | 1.55 | -21.78 | 18.21 | 6.33 | 195.59 | 0.3825 | 933.5 | 808.7 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -21.23 | 18.02 | 6.14 | 195.57 | 0.3731 | 832.0 | 702.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
