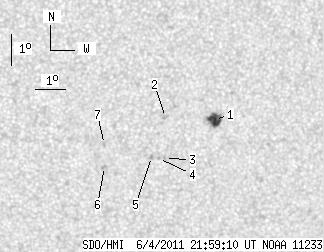

SDO HMI 2011-06-04 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.21 | 25.24 | 6.59 | 13.59 | -18.51 | 26.27 | 14.39 | 216.89 | 0.3944 | 641.0 | 239.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.21 | 14.47 | 6.59 | 7.81 | -18.09 | 27.29 | 15.41 | 219.50 | 0.3988 | 1000.1 | 797.9 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -18.03 | 25.67 | 13.78 | 216.57 | 0.3818 | 854.0 | 599.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -19.35 | 25.74 | 13.86 | 214.64 | 0.3993 | 847.0 | 653.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -19.35 | 25.54 | 13.66 | 214.26 | 0.3975 | 725.0 | 618.6 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -19.28 | 25.31 | 13.42 | 213.90 | 0.3945 | 743.0 | 523.9 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -19.60 | 23.78 | 11.90 | 210.37 | 0.3857 | -876.0 | -696.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -18.90 | 23.73 | 11.84 | 211.27 | 0.3756 | -813.0 | -661.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
