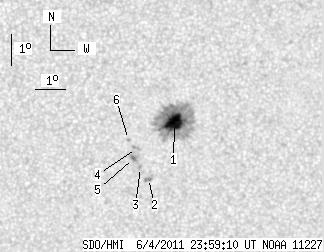

SDO HMI 2011-06-04 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.62 | 137.10 | 11.03 | 73.37 | -20.80 | 19.35 | 8.58 | 201.68 | 0.3795 | 1148.5 | 513.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.17 | 121.72 | 10.25 | 65.09 | -20.66 | 19.48 | 8.71 | 202.10 | 0.3781 | 1292.7 | 489.0 | |
| 0.00 | 4.34 | 0.00 | 2.35 | -22.49 | 18.73 | 7.95 | 198.66 | 0.4013 | 869.0 | 606.6 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -22.13 | 18.44 | 7.67 | 198.34 | 0.3944 | 686.0 | 576.2 | |
| 0.00 | 3.26 | 0.00 | 1.75 | -21.51 | 18.28 | 7.50 | 198.52 | 0.3841 | 870.0 | 783.6 | |
| 1.45 | 4.70 | 0.78 | 2.53 | -21.83 | 18.19 | 7.42 | 198.04 | 0.3886 | 920.4 | 771.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.21 | 18.00 | 7.22 | 198.14 | 0.3782 | 869.0 | 722.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
