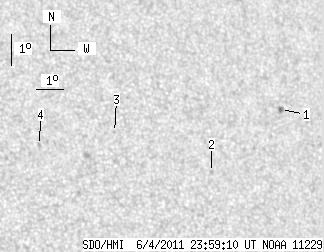

SDO HMI 2011-06-04 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 6.97 | 0.29 | 4.20 | 17.11 | 41.33 | 30.56 | 301.73 | 0.5716 | -98.3 | -151.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 2.62 | 0.29 | 1.65 | 17.95 | 44.98 | 34.20 | 300.23 | 0.6211 | -782.8 | -608.4 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 15.94 | 41.97 | 31.19 | 299.18 | 0.5726 | -706.0 | -549.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 17.20 | 38.64 | 27.86 | 303.84 | 0.5396 | 644.0 | 545.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 16.78 | 35.90 | 25.13 | 305.72 | 0.5028 | 650.0 | 457.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
