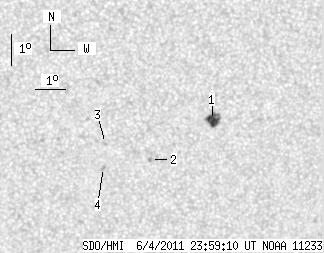

SDO HMI 2011-06-04 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.31 | 19.00 | 5.60 | 10.29 | -18.39 | 26.57 | 15.80 | 219.61 | 0.4071 | 516.8 | 212.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.31 | 14.65 | 5.60 | 7.95 | -18.11 | 27.28 | 16.51 | 221.35 | 0.4106 | 975.1 | 805.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.36 | 25.30 | 14.53 | 215.84 | 0.4059 | 796.0 | 622.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -18.85 | 23.77 | 12.99 | 213.69 | 0.3852 | -893.0 | -724.8 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -19.62 | 23.76 | 12.99 | 212.53 | 0.3953 | -919.0 | -720.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
