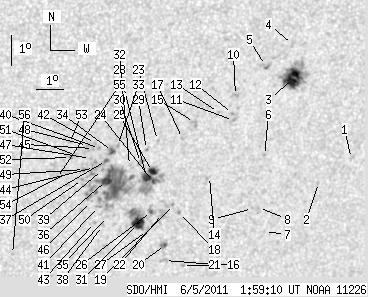

SDO HMI 2011-06-05 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.62 | 319.33 | 33.60 | 188.38 | -22.15 | 34.54 | 24.87 | 226.08 | 0.5432 | 28.0 | -95.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.08 | -21.93 | 41.64 | 31.97 | 232.99 | 0.6174 | 585.0 | 492.2 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -22.72 | 40.57 | 30.90 | 231.04 | 0.6114 | 590.0 | 436.9 | |
| 20.53 | 49.84 | 12.33 | 29.92 | -19.34 | 38.87 | 29.20 | 234.55 | 0.5673 | 977.4 | 475.5 | |
| 0.00 | 2.80 | 0.00 | 1.67 | -18.24 | 38.63 | 28.96 | 236.03 | 0.5565 | -105.0 | -47.0 | |
| 0.00 | 4.43 | 0.00 | 2.63 | -18.92 | 37.76 | 28.09 | 234.23 | 0.5511 | 567.0 | 754.1 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -21.84 | 38.31 | 28.64 | 230.35 | 0.5800 | 717.0 | 603.8 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -24.35 | 38.91 | 29.24 | 227.41 | 0.6067 | 657.0 | 583.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -23.55 | 38.48 | 28.81 | 228.10 | 0.5957 | 734.0 | 588.9 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -23.58 | 38.26 | 28.59 | 227.86 | 0.5937 | 724.0 | 618.5 | |
| 0.00 | 2.17 | 0.00 | 1.28 | -19.89 | 36.85 | 27.18 | 231.90 | 0.5479 | 938.0 | 692.8 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -20.70 | 36.93 | 27.26 | 230.75 | 0.5554 | 845.0 | 710.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -20.47 | 36.85 | 27.18 | 231.01 | 0.5527 | 777.0 | 632.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -20.44 | 36.33 | 26.66 | 230.56 | 0.5465 | 661.0 | 497.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -22.53 | 36.42 | 26.75 | 227.58 | 0.5653 | 460.0 | 460.8 | |
| 0.00 | 4.34 | 0.00 | 2.55 | -20.76 | 35.52 | 25.85 | 229.26 | 0.5402 | 873.0 | 555.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -25.49 | 36.07 | 26.40 | 223.22 | 0.5883 | 815.0 | 631.4 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -21.28 | 35.18 | 25.51 | 228.14 | 0.5410 | 679.0 | 417.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -23.72 | 35.56 | 25.89 | 225.06 | 0.5670 | 781.0 | 685.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -23.45 | 35.29 | 25.61 | 225.14 | 0.5617 | 702.0 | 543.2 | |
| 1.45 | 4.70 | 0.87 | 2.84 | -24.79 | 35.28 | 25.61 | 223.33 | 0.5740 | -654.4 | -563.8 | |
| 0.00 | 3.80 | 0.00 | 2.31 | -25.32 | 35.36 | 25.69 | 222.71 | 0.5799 | -579.0 | -475.2 | |
| 0.00 | 6.33 | 0.00 | 3.78 | -23.75 | 34.94 | 25.27 | 224.37 | 0.5610 | 69.0 | -8.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -21.35 | 34.29 | 24.62 | 227.09 | 0.5319 | 344.0 | 356.3 | |
| 1.81 | 40.16 | 1.07 | 23.68 | -22.70 | 34.40 | 24.73 | 225.26 | 0.5455 | 551.0 | 241.5 | |
| 4.43 | -24.00 | 2.61 | -24.00 | -22.37 | 34.30 | 24.63 | 225.62 | 0.5414 | 864.5 | 999999 | |
| 1.63 | 5.34 | 0.97 | 3.18 | -23.69 | 34.53 | 24.85 | 224.01 | 0.5561 | -666.6 | -444.9 | |
| 0.00 | 2.62 | 0.00 | 1.57 | -24.32 | 34.51 | 24.84 | 223.14 | 0.5620 | -507.0 | -393.1 | |
| 5.52 | -24.00 | 3.25 | -24.00 | -22.56 | 34.12 | 24.45 | 225.14 | 0.5413 | 919.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -21.65 | 33.95 | 24.28 | 226.28 | 0.5309 | 593.0 | 513.1 | |
| 0.00 | 3.53 | 0.00 | 2.06 | -22.07 | 33.81 | 24.14 | 225.51 | 0.5334 | 782.0 | 593.0 | |
| 10.49 | 25.87 | 6.24 | 15.36 | -24.09 | 34.13 | 24.46 | 223.04 | 0.5560 | -881.6 | -273.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.17 | 33.44 | 23.77 | 224.94 | 0.5304 | 438.0 | 370.4 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -21.52 | 32.89 | 23.22 | 225.27 | 0.5183 | -651.0 | -566.6 | |
| 2.71 | 4.07 | 1.57 | 2.35 | -21.71 | 32.75 | 23.08 | 224.81 | 0.5187 | -853.8 | -685.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -23.86 | 32.95 | 23.28 | 222.03 | 0.5420 | -452.0 | -424.1 | |
| 7.42 | 103.84 | 4.32 | 60.67 | -22.66 | 32.70 | 23.03 | 223.39 | 0.5276 | -1020.6 | -323.8 | |
| 0.63 | 3.35 | 0.37 | 1.94 | -22.01 | 32.58 | 22.91 | 224.19 | 0.5199 | -808.0 | -713.2 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -24.15 | 32.83 | 23.16 | 221.49 | 0.5439 | -612.0 | -551.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.30 | 32.49 | 22.82 | 223.66 | 0.5219 | -761.0 | -736.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -21.61 | 32.27 | 22.60 | 224.39 | 0.5127 | -828.0 | -734.6 | |
| 0.00 | 2.17 | 0.00 | 1.27 | -23.52 | 32.57 | 22.90 | 222.03 | 0.5349 | -573.0 | -510.0 | |
| 0.00 | 1.90 | 0.00 | 1.09 | -21.45 | 32.10 | 22.43 | 224.43 | 0.5093 | -918.0 | -675.8 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -24.05 | 32.52 | 22.85 | 221.26 | 0.5398 | -653.0 | -518.2 | |
| 0.00 | 7.24 | 0.00 | 4.19 | -22.24 | 32.20 | 22.53 | 223.40 | 0.5182 | -602.0 | -755.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.61 | 32.06 | 22.39 | 224.13 | 0.5105 | -911.0 | -777.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -23.36 | 32.29 | 22.61 | 221.93 | 0.5304 | -498.0 | -432.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.94 | 32.00 | 22.33 | 223.59 | 0.5132 | -746.0 | -648.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.52 | 31.83 | 22.16 | 224.00 | 0.5071 | -907.0 | -773.9 | |
| 0.00 | 2.35 | 0.00 | 1.36 | -22.30 | 31.85 | 22.18 | 222.89 | 0.5153 | -826.0 | -706.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.63 | 31.84 | 22.17 | 222.40 | 0.5185 | -843.0 | -657.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -21.84 | 31.49 | 21.82 | 223.11 | 0.5069 | -890.0 | -648.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.91 | 31.29 | 21.62 | 222.76 | 0.5055 | -845.0 | -764.1 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.42 | 31.18 | 21.51 | 223.34 | 0.4993 | -728.0 | -579.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -22.40 | 31.30 | 21.63 | 222.06 | 0.5107 | -664.0 | -569.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.60 | 30.91 | 21.24 | 221.29 | 0.5088 | -693.0 | -570.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -25.13 | 29.77 | 20.10 | 216.45 | 0.5257 | -594.0 | -451.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
