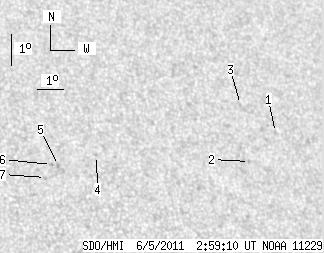

SDO HMI 2011-06-05 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.60 | 0.00 | 4.59 | 17.35 | 39.63 | 30.51 | 302.10 | 0.5721 | 90.1 | 137.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.70 | 17.98 | 44.89 | 35.77 | 299.27 | 0.6397 | -835.0 | -602.9 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 17.05 | 43.67 | 34.55 | 298.65 | 0.6201 | -676.0 | -515.6 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 18.88 | 43.73 | 34.61 | 301.28 | 0.6311 | -684.0 | -494.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 17.23 | 37.97 | 28.85 | 303.01 | 0.5516 | 562.0 | 443.2 | |
| 0.00 | 1.72 | 0.00 | 1.00 | 16.91 | 36.54 | 27.42 | 303.72 | 0.5318 | 770.0 | 609.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 16.94 | 36.29 | 27.17 | 303.99 | 0.5290 | 808.0 | 612.9 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 16.52 | 36.02 | 26.90 | 303.56 | 0.5225 | 686.0 | 594.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
