SDO HMI 2011-06-05 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.95 | 143.93 | 17.14 | 85.61 | 9.36 | 336.83 | -32.28 | 72.53 | 0.5545 | -794.4 | -348.5 | |
|
previous
or next observation for the same group /

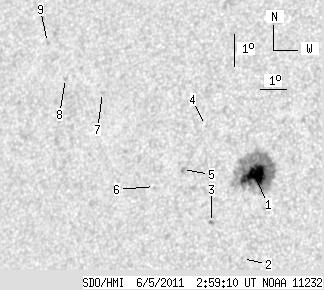

back to the solar disc SDO HMI 2011-06-05 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.95 | 133.07 | 17.14 | 78.81 | 9.28 | 337.17 | -31.94 | 72.51 | 0.5496 | -1098.7 | -374.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 6.73 | 336.97 | -32.15 | 77.17 | 0.5442 | -483.0 | -423.7 | |
| 0.00 | 2.17 | 0.00 | 1.30 | 7.84 | 335.74 | -33.38 | 75.64 | 0.5648 | -857.0 | -602.2 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 10.83 | 335.19 | -33.93 | 70.79 | 0.5828 | -584.0 | -493.8 | |
| 0.00 | 1.99 | 0.00 | 1.22 | 9.47 | 334.49 | -34.63 | 73.34 | 0.5872 | -792.0 | -706.5 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 8.95 | 333.50 | -35.62 | 74.58 | 0.5991 | -553.0 | -542.4 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 11.87 | 331.08 | -38.04 | 70.92 | 0.6404 | 740.0 | 581.4 | |
| 0.00 | 1.81 | 0.00 | 1.19 | 12.31 | 329.52 | -39.60 | 70.86 | 0.6615 | 722.0 | 529.2 | |
| 0.00 | 1.54 | 0.00 | 1.03 | 13.44 | 328.56 | -40.56 | 69.60 | 0.6770 | 667.0 | 473.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
