SDO HMI 2011-06-05 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.79 | 140.16 | 14.51 | 82.21 | 9.28 | 336.99 | -31.04 | 72.10 | 0.5367 | -889.4 | -396.9 | |
|
previous
or next observation for the same group /

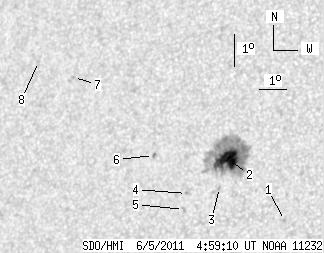

back to the solar disc SDO HMI 2011-06-05 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.88 | 7.41 | 339.34 | -28.68 | 74.49 | 0.4959 | -802.0 | -603.2 | |
| 24.79 | 129.74 | 14.51 | 75.96 | 9.29 | 337.16 | -30.87 | 72.00 | 0.5344 | -1151.1 | -401.9 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 8.43 | 336.95 | -31.07 | 73.66 | 0.5341 | -565.0 | -495.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 8.25 | 335.77 | -32.25 | 74.50 | 0.5501 | -749.0 | -625.1 | |
| 0.00 | 1.90 | 0.00 | 1.12 | 7.76 | 335.71 | -32.32 | 75.40 | 0.5495 | -763.0 | -567.8 | |
| 0.00 | 1.90 | 0.00 | 1.15 | 9.42 | 334.44 | -33.58 | 73.02 | 0.5727 | -877.0 | -718.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 11.85 | 331.07 | -36.95 | 70.52 | 0.6262 | 666.0 | 479.2 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 12.35 | 329.61 | -38.41 | 70.36 | 0.6467 | 662.0 | 528.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
