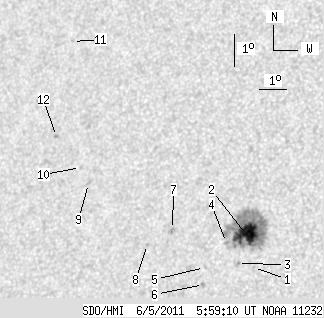

SDO HMI 2011-06-05 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.58 | 136.17 | 17.80 | 79.64 | 9.33 | 336.71 | -30.77 | 71.90 | 0.5329 | -743.2 | -367.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.63 | 8.25 | 337.49 | -29.99 | 73.51 | 0.5179 | -314.0 | -229.6 | |
| 30.58 | 118.34 | 17.80 | 68.87 | 9.27 | 337.14 | -30.33 | 71.79 | 0.5267 | -1104.4 | -406.0 | |
| 0.00 | 2.08 | 0.00 | 1.21 | 8.37 | 336.90 | -30.57 | 73.55 | 0.5267 | -697.0 | -603.0 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 9.02 | 336.45 | -31.02 | 72.58 | 0.5355 | -64.0 | -88.3 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 8.25 | 335.73 | -31.75 | 74.29 | 0.5430 | -632.0 | -576.8 | |
| 0.00 | 2.53 | 0.00 | 1.49 | 7.73 | 335.74 | -31.74 | 75.23 | 0.5411 | -802.0 | -543.5 | |
| 0.00 | 2.17 | 0.00 | 1.30 | 9.43 | 334.44 | -33.03 | 72.78 | 0.5651 | -835.0 | -692.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 8.97 | 333.57 | -33.91 | 73.94 | 0.5756 | -736.0 | -594.1 | |
| 0.00 | 2.17 | 0.00 | 1.36 | 10.86 | 331.10 | -36.37 | 71.84 | 0.6152 | 445.0 | 339.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 11.35 | 330.72 | -36.76 | 71.21 | 0.6220 | 579.0 | 384.3 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 15.30 | 329.68 | -37.79 | 65.73 | 0.6506 | 592.0 | 517.9 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 12.32 | 329.62 | -37.85 | 70.18 | 0.6395 | 718.0 | 544.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
