SDO HMI 2011-06-05 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.41 | 23.27 | 4.65 | 12.86 | -18.85 | 26.43 | 18.96 | 223.83 | 0.4460 | 460.6 | 354.4 | |
|
previous
or next observation for the same group /

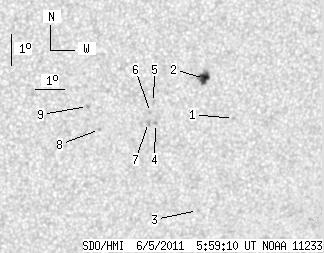

back to the solar disc SDO HMI 2011-06-05 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.35 | 28.40 | 20.92 | 225.74 | 0.4724 | 726.0 | 549.1 | |
| 8.41 | 11.49 | 4.65 | 6.35 | -18.07 | 27.24 | 19.77 | 226.32 | 0.4464 | 955.2 | 833.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.34 | 27.57 | 20.10 | 220.12 | 0.4952 | -676.0 | -577.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -19.51 | 25.74 | 18.27 | 221.76 | 0.4455 | 749.0 | 648.6 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -18.84 | 25.60 | 18.13 | 222.64 | 0.4365 | 739.0 | 516.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.16 | 25.53 | 18.06 | 222.01 | 0.4394 | 797.0 | 605.8 | |
| 0.00 | 2.99 | 0.00 | 1.65 | -19.48 | 25.50 | 18.03 | 221.45 | 0.4426 | 765.0 | 642.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.71 | 23.87 | 16.40 | 218.50 | 0.4287 | -879.0 | -676.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -18.97 | 23.39 | 15.92 | 218.86 | 0.4151 | -836.0 | -656.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
