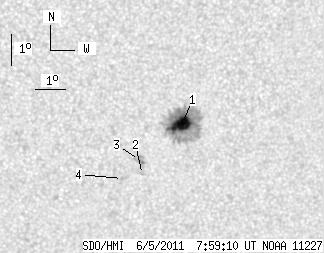

SDO HMI 2011-06-05 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.91 | 123.96 | 9.73 | 67.36 | -20.78 | 19.42 | 13.04 | 210.95 | 0.4122 | 1194.8 | 504.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.91 | 112.10 | 9.73 | 60.90 | -20.66 | 19.55 | 13.17 | 211.35 | 0.4115 | 1304.4 | 477.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -22.30 | 18.39 | 12.01 | 207.08 | 0.4246 | 685.0 | 535.0 | |
| 0.00 | 9.32 | 0.00 | 5.08 | -21.84 | 18.25 | 11.87 | 207.35 | 0.4173 | 1130.0 | 771.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -22.43 | 17.73 | 11.35 | 205.66 | 0.4218 | 703.0 | 466.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
