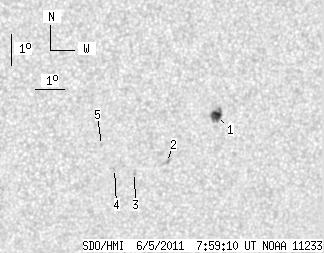

SDO HMI 2011-06-05 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.88 | 18.73 | 3.83 | 10.40 | -18.58 | 26.33 | 19.95 | 225.64 | 0.4544 | 314.7 | 264.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.88 | 11.94 | 3.83 | 6.65 | -18.02 | 27.20 | 20.82 | 227.80 | 0.4581 | 1048.6 | 728.2 | |
| 0.00 | 2.80 | 0.00 | 1.56 | -19.53 | 25.67 | 19.30 | 223.22 | 0.4566 | 680.0 | 598.6 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -19.85 | 24.62 | 18.24 | 221.17 | 0.4491 | -621.0 | -513.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.72 | 23.93 | 17.55 | 220.31 | 0.4406 | -888.0 | -719.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.98 | 23.41 | 17.03 | 220.66 | 0.4267 | -723.0 | -526.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
