SDO HMI 2011-06-05 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.00 | 124.77 | 10.34 | 67.98 | -20.79 | 19.42 | 13.59 | 211.96 | 0.4170 | 1089.5 | 473.3 | |
|
previous
or next observation for the same group /

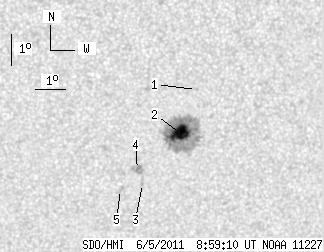

back to the solar disc SDO HMI 2011-06-05 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.24 | 19.98 | 14.14 | 215.24 | 0.4016 | -441.0 | -341.2 | |
| 19.00 | 110.47 | 10.34 | 60.17 | -20.66 | 19.57 | 13.74 | 212.41 | 0.4164 | 1310.7 | 450.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -22.30 | 18.45 | 12.62 | 208.22 | 0.4291 | 725.0 | 568.1 | |
| 0.00 | 8.69 | 0.00 | 4.74 | -21.84 | 18.24 | 12.41 | 208.38 | 0.4213 | 1115.0 | 800.4 | |
| 0.00 | 3.53 | 0.00 | 1.93 | -22.49 | 17.72 | 11.89 | 206.63 | 0.4266 | 672.0 | 493.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
