SDO HMI 2011-06-05 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.51 | 196.70 | 23.34 | 105.55 | 17.26 | 20.19 | 14.36 | 321.88 | 0.3851 | -456.4 | -340.7 | |
|
previous
or next observation for the same group /

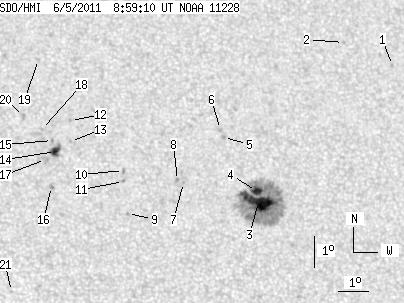

back to the solar disc SDO HMI 2011-06-05 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.67 | 21.28 | 26.16 | 20.33 | 318.49 | 0.4904 | -841.0 | -623.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 22.03 | 24.56 | 18.73 | 321.77 | 0.4830 | 648.0 | 590.8 | |
| 30.76 | 158.96 | 16.53 | 85.44 | 16.89 | 21.13 | 15.30 | 319.29 | 0.3887 | -1202.9 | -465.3 | |
| 6.51 | -3.00 | 3.51 | -3.00 | 17.21 | 21.09 | 15.26 | 319.91 | 0.3921 | -991.1 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 18.94 | 20.15 | 14.32 | 324.46 | 0.4041 | -887.0 | -721.5 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 19.20 | 20.07 | 14.24 | 324.99 | 0.4066 | -870.0 | -691.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 17.49 | 18.71 | 12.88 | 324.98 | 0.3722 | -877.0 | -697.5 | |
| 0.00 | 2.08 | 0.00 | 1.11 | 17.56 | 18.52 | 12.69 | 325.48 | 0.3712 | -881.0 | -748.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.50 | 16.83 | 11.00 | 327.49 | 0.3418 | -830.0 | -662.3 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 17.88 | 16.78 | 10.95 | 329.74 | 0.3603 | -916.0 | -755.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.52 | 16.76 | 10.93 | 329.26 | 0.3553 | -658.0 | -517.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 19.48 | 15.15 | 9.32 | 335.59 | 0.3710 | 769.0 | 630.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 18.80 | 15.11 | 9.28 | 334.86 | 0.3609 | 890.0 | 724.6 | |
| 6.24 | 9.50 | 3.30 | 5.03 | 18.48 | 14.61 | 8.78 | 335.66 | 0.3527 | 1041.9 | 797.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 18.84 | 14.53 | 8.70 | 336.28 | 0.3574 | 1007.0 | 783.5 | |
| 0.00 | 2.17 | 0.00 | 1.14 | 17.36 | 14.42 | 8.59 | 334.68 | 0.3348 | 1203.0 | 855.8 | |
| 0.00 | 3.98 | 0.00 | 2.10 | 18.23 | 14.27 | 8.44 | 336.18 | 0.3466 | 749.0 | 736.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 19.19 | 14.19 | 8.36 | 337.51 | 0.3605 | 628.0 | 536.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 21.47 | 14.21 | 8.38 | 339.80 | 0.3947 | 670.0 | 521.2 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 19.61 | 13.62 | 7.79 | 339.33 | 0.3634 | 764.0 | 650.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 14.04 | 13.02 | 7.19 | 333.71 | 0.2752 | 487.0 | 337.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
