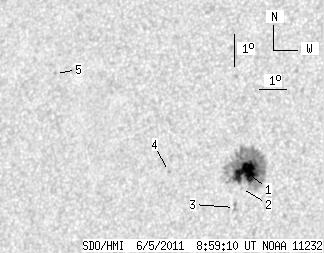

SDO HMI 2011-06-05 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.49 | 129.83 | 17.46 | 74.41 | 9.27 | 337.05 | -28.78 | 70.99 | 0.5045 | -1015.7 | -395.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.49 | 123.32 | 17.46 | 70.63 | 9.28 | 337.13 | -28.70 | 70.92 | 0.5034 | -1151.3 | -394.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 8.79 | 337.00 | -28.83 | 71.93 | 0.5032 | -619.0 | -441.5 | |
| 0.00 | 3.62 | 0.00 | 2.07 | 8.20 | 336.80 | -29.03 | 73.16 | 0.5038 | -777.0 | -545.6 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 9.31 | 334.35 | -31.48 | 72.30 | 0.5431 | -981.0 | -792.0 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 12.36 | 329.73 | -36.10 | 69.38 | 0.6171 | 682.0 | 580.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
