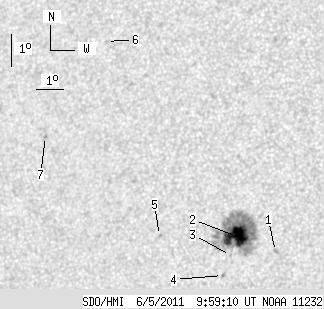

SDO HMI 2011-06-05 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.85 | 133.45 | 18.15 | 76.19 | 9.33 | 336.99 | -28.29 | 70.60 | 0.4977 | -866.1 | -360.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.97 | 8.82 | 338.50 | -26.78 | 70.69 | 0.4737 | 560.0 | 349.7 | |
| 31.85 | 126.21 | 18.15 | 71.94 | 9.28 | 337.11 | -28.17 | 70.62 | 0.4959 | -1126.8 | -384.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 8.70 | 336.95 | -28.33 | 71.84 | 0.4957 | -773.0 | -590.7 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 8.08 | 336.72 | -28.56 | 73.16 | 0.4966 | -720.0 | -572.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 9.32 | 334.37 | -30.91 | 72.02 | 0.5350 | -945.0 | -695.2 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 15.37 | 331.57 | -33.71 | 63.44 | 0.6005 | 635.0 | 515.4 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 12.40 | 329.75 | -35.53 | 69.07 | 0.6099 | 778.0 | 577.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
