SDO HMI 2011-06-05 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.96 | 20.99 | 5.02 | 11.75 | -18.95 | 26.04 | 20.75 | 226.12 | 0.4672 | 299.2 | -14.4 | |
|
previous
or next observation for the same group /

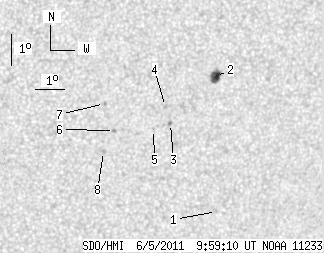

back to the solar disc SDO HMI 2011-06-05 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.39 | 27.86 | 22.58 | 223.18 | 0.5207 | -752.0 | -646.0 | |
| 8.96 | 10.31 | 5.02 | 5.78 | -18.01 | 27.16 | 21.88 | 229.15 | 0.4704 | 923.0 | 814.6 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -19.52 | 25.81 | 20.53 | 224.92 | 0.4700 | 795.0 | 635.6 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -18.97 | 25.57 | 20.28 | 225.48 | 0.4617 | 642.0 | 500.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -19.71 | 25.25 | 19.97 | 223.85 | 0.4659 | 641.0 | 494.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -19.75 | 23.92 | 18.64 | 221.90 | 0.4522 | -830.0 | -686.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -18.88 | 23.48 | 18.19 | 222.64 | 0.4379 | -784.0 | -591.6 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -20.43 | 23.63 | 18.34 | 220.42 | 0.4567 | -749.0 | -606.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
