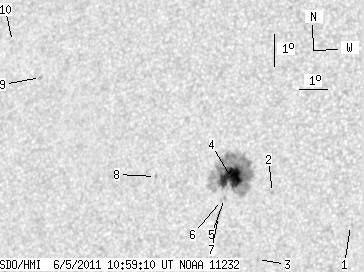

SDO HMI 2011-06-05 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.50 | 146.94 | 15.59 | 83.48 | 9.28 | 336.94 | -27.80 | 70.39 | 0.4904 | -784.0 | -371.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.20 | 7.80 | 341.26 | -23.48 | 70.67 | 0.4200 | -412.0 | -499.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 8.82 | 338.54 | -26.19 | 70.32 | 0.4651 | 664.0 | 465.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 6.76 | 338.17 | -26.56 | 74.83 | 0.4620 | -724.0 | -529.7 | |
| 27.50 | 134.70 | 15.59 | 76.40 | 9.28 | 337.09 | -27.65 | 70.30 | 0.4883 | -1118.3 | -392.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 8.64 | 336.90 | -27.84 | 71.69 | 0.4882 | -783.0 | -578.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 8.58 | 336.80 | -27.94 | 71.86 | 0.4894 | -526.0 | -485.0 | |
| 0.00 | 3.17 | 0.00 | 1.80 | 8.08 | 336.73 | -28.00 | 72.87 | 0.4884 | -581.0 | -497.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 9.32 | 334.40 | -30.33 | 71.73 | 0.5268 | -822.0 | -586.9 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 12.40 | 329.78 | -34.95 | 68.79 | 0.6024 | 755.0 | 603.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 13.53 | 328.52 | -36.22 | 67.64 | 0.6234 | 584.0 | 509.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
