SDO HMI 2011-06-05 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.93 | 304.40 | 29.91 | 188.92 | -21.98 | 34.66 | 30.48 | 231.53 | 0.6032 | 86.8 | -67.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

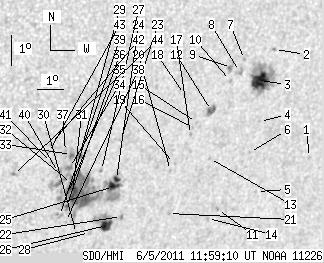

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.15 | -21.81 | 41.59 | 37.41 | 236.78 | 0.6765 | 587.0 | 386.1 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -18.32 | 39.24 | 35.06 | 240.23 | 0.6305 | -767.0 | -530.9 | |
| 16.55 | 57.35 | 10.56 | 36.60 | -19.31 | 38.89 | 34.71 | 238.56 | 0.6320 | 1032.2 | 347.0 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -20.64 | 39.23 | 35.04 | 236.90 | 0.6437 | 690.0 | 531.6 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -22.93 | 39.76 | 35.58 | 234.13 | 0.6635 | 634.0 | 556.3 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -21.65 | 39.11 | 34.92 | 235.42 | 0.6485 | 601.0 | 497.9 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -18.64 | 38.15 | 33.96 | 239.06 | 0.6194 | -502.0 | -299.1 | |
| 0.00 | 4.25 | 0.00 | 2.68 | -19.02 | 38.04 | 33.86 | 238.43 | 0.6204 | 662.0 | 549.9 | |
| 0.00 | 3.89 | 0.00 | 2.44 | -18.90 | 37.70 | 33.52 | 238.39 | 0.6157 | 906.0 | 755.1 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -19.31 | 37.76 | 33.57 | 237.82 | 0.6189 | 632.0 | 541.8 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -23.53 | 38.36 | 34.18 | 232.38 | 0.6526 | 679.0 | 585.5 | |
| 0.00 | 6.87 | 0.00 | 4.33 | -20.28 | 37.25 | 33.07 | 236.07 | 0.6191 | 762.0 | 632.7 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -21.85 | 37.57 | 33.39 | 234.09 | 0.6329 | 528.0 | 439.7 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -23.83 | 38.05 | 33.87 | 231.76 | 0.6513 | 439.0 | 441.6 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -20.67 | 36.77 | 32.58 | 235.16 | 0.6161 | 569.0 | 442.4 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -20.84 | 36.65 | 32.47 | 234.84 | 0.6159 | 670.0 | 605.2 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -21.07 | 36.63 | 32.45 | 234.50 | 0.6172 | 667.0 | 535.4 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -19.77 | 36.09 | 31.91 | 235.98 | 0.6024 | 686.0 | 589.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -22.01 | 36.25 | 32.06 | 232.88 | 0.6195 | 489.0 | 498.6 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -22.24 | 36.15 | 31.97 | 232.48 | 0.6200 | 613.0 | 421.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -23.66 | 36.45 | 32.27 | 230.78 | 0.6334 | 646.0 | 500.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -23.77 | 34.65 | 30.46 | 229.19 | 0.6153 | -644.0 | -543.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -21.26 | 34.00 | 29.82 | 232.14 | 0.5892 | 478.0 | 395.6 | |
| 2.80 | 34.74 | 1.73 | 21.51 | -22.54 | 34.15 | 29.97 | 230.45 | 0.6005 | 880.6 | 268.6 | |
| 6.33 | -24.00 | 3.92 | -24.00 | -22.77 | 34.09 | 29.91 | 230.08 | 0.6017 | 778.5 | 999999 | |
| 8.59 | 22.70 | 5.37 | 14.17 | -24.06 | 34.15 | 29.96 | 228.36 | 0.6124 | -837.0 | -335.0 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -22.25 | 33.51 | 29.33 | 230.31 | 0.5913 | 648.0 | 521.6 | |
| 0.00 | 1.90 | 0.00 | 1.18 | -24.30 | 33.55 | 29.37 | 227.53 | 0.6082 | -656.0 | -518.7 | |
| 1.90 | 3.53 | 1.15 | 2.14 | -21.75 | 32.58 | 28.39 | 230.18 | 0.5772 | -810.4 | -646.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -24.33 | 33.07 | 28.88 | 227.05 | 0.6035 | -633.0 | -529.3 | |
| 8.05 | 119.49 | 4.92 | 73.13 | -23.00 | 32.59 | 28.41 | 228.43 | 0.5875 | -953.1 | -308.6 | |
| 1.27 | -31.00 | 0.77 | -31.00 | -22.67 | 32.48 | 28.30 | 228.79 | 0.5836 | -948.8 | 999999 | |
| 0.00 | 5.34 | 0.00 | 3.22 | -21.72 | 32.27 | 28.09 | 229.95 | 0.5735 | -932.0 | -791.8 | |
| 0.00 | 4.79 | 0.00 | 2.90 | -22.15 | 32.29 | 28.10 | 229.35 | 0.5772 | -891.0 | -741.7 | |
| 1.54 | -31.00 | 0.94 | -31.00 | -23.00 | 32.41 | 28.22 | 228.26 | 0.5855 | -968.8 | 999999 | |
| 0.90 | -31.00 | 0.55 | -31.00 | -23.43 | 32.47 | 28.28 | 227.72 | 0.5898 | -559.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -21.62 | 32.03 | 27.84 | 229.86 | 0.5701 | -795.0 | -616.9 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -23.93 | 32.55 | 28.36 | 227.12 | 0.5948 | -299.0 | -345.8 | |
| 0.00 | 3.17 | 0.00 | 1.94 | -23.73 | 32.27 | 28.09 | 227.13 | 0.5903 | -513.0 | -475.6 | |
| 0.00 | 5.43 | 0.00 | 3.28 | -22.31 | 31.92 | 27.73 | 228.77 | 0.5745 | -647.0 | -681.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -21.98 | 31.59 | 27.40 | 228.93 | 0.5682 | -747.0 | -655.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -21.40 | 31.43 | 27.24 | 229.63 | 0.5616 | -705.0 | -626.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -21.66 | 31.41 | 27.22 | 229.23 | 0.5635 | -785.0 | -676.7 | |
| 0.00 | 2.08 | 0.00 | 1.24 | -22.38 | 30.27 | 26.08 | 227.06 | 0.5574 | -848.0 | -714.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
