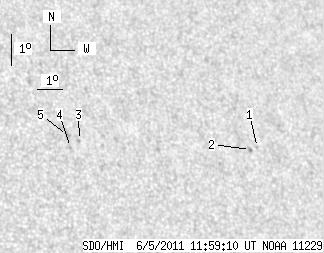

SDO HMI 2011-06-05 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.98 | 0.00 | 5.02 | 17.03 | 38.71 | 34.52 | 298.75 | 0.6190 | 247.4 | 251.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.67 | 16.88 | 43.60 | 39.41 | 295.71 | 0.6766 | -501.0 | -325.8 | |
| 0.00 | 1.54 | 0.00 | 1.03 | 16.82 | 43.29 | 39.11 | 295.77 | 0.6728 | -747.0 | -615.1 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 17.09 | 36.63 | 32.45 | 300.01 | 0.5944 | 861.0 | 715.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 16.86 | 36.25 | 32.06 | 299.93 | 0.5884 | 813.0 | 598.0 | |
| 0.00 | 3.08 | 0.00 | 1.88 | 17.24 | 36.21 | 32.02 | 300.54 | 0.5902 | 811.0 | 622.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
