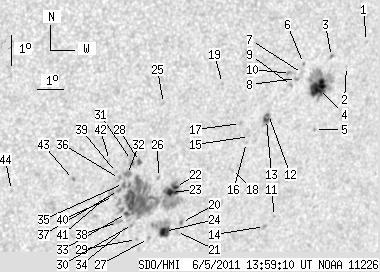

SDO HMI 2011-06-05 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.98 | 278.40 | 25.45 | 174.74 | -22.01 | 34.92 | 31.83 | 232.60 | 0.6181 | 68.2 | -123.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.59 | -17.86 | 40.49 | 37.41 | 242.23 | 0.6558 | -439.0 | -412.4 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -18.66 | 39.89 | 36.81 | 240.76 | 0.6528 | -371.0 | -329.9 | |
| 0.00 | 2.17 | 0.00 | 1.40 | -18.34 | 39.21 | 36.13 | 240.82 | 0.6432 | -513.0 | -375.1 | |
| 17.55 | 48.48 | 11.35 | 31.35 | -19.37 | 38.95 | 35.87 | 239.20 | 0.6457 | 977.7 | 429.0 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -20.70 | 39.14 | 36.06 | 237.46 | 0.6554 | 554.0 | 514.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -18.57 | 38.16 | 35.07 | 239.87 | 0.6321 | -407.0 | -423.0 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -18.89 | 38.19 | 35.11 | 239.43 | 0.6343 | 444.0 | 378.4 | |
| 0.00 | 1.99 | 0.00 | 1.27 | -19.05 | 38.00 | 34.91 | 239.07 | 0.6329 | 773.0 | 664.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -19.28 | 37.86 | 34.77 | 238.66 | 0.6326 | 793.0 | 640.5 | |
| 0.00 | 3.26 | 0.00 | 2.07 | -18.89 | 37.72 | 34.64 | 239.13 | 0.6288 | 830.0 | 725.2 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -23.56 | 38.36 | 35.28 | 233.10 | 0.6643 | 614.0 | 498.3 | |
| 1.18 | 8.14 | 0.75 | 5.19 | -20.21 | 37.18 | 34.10 | 236.88 | 0.6305 | 641.7 | 520.6 | |
| 2.71 | -12.00 | 1.73 | -12.00 | -20.38 | 37.15 | 34.06 | 236.62 | 0.6310 | 677.4 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.25 | -23.89 | 38.06 | 34.97 | 232.45 | 0.6633 | 723.0 | 605.0 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -20.93 | 36.62 | 33.54 | 235.48 | 0.6286 | 762.0 | 648.2 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -21.12 | 36.55 | 33.47 | 235.16 | 0.6291 | 632.0 | 517.5 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -20.51 | 36.16 | 33.08 | 235.75 | 0.6207 | 668.0 | 520.7 | |
| 0.00 | 2.35 | 0.00 | 1.50 | -22.01 | 36.20 | 33.11 | 233.67 | 0.6309 | 650.0 | 511.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -19.21 | 35.17 | 32.09 | 236.92 | 0.6009 | -650.0 | -507.8 | |
| 0.00 | 1.81 | 0.00 | 1.15 | -23.76 | 34.71 | 31.62 | 230.15 | 0.6274 | -682.0 | -542.5 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -24.06 | 34.59 | 31.51 | 229.65 | 0.6285 | -525.0 | -422.4 | |
| 1.63 | 131.95 | 1.02 | 81.99 | -22.60 | 34.17 | 31.09 | 231.29 | 0.6131 | 851.5 | -206.4 | |
| 5.06 | -22.00 | 3.17 | -22.00 | -22.77 | 34.06 | 30.98 | 230.97 | 0.6131 | 838.9 | 999999 | |
| 7.87 | 20.98 | 4.98 | 13.24 | -24.06 | 34.13 | 31.04 | 229.27 | 0.6236 | -844.0 | -313.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -19.86 | 33.08 | 30.00 | 234.35 | 0.5809 | -636.0 | -533.6 | |
| 0.00 | 1.72 | 0.00 | 1.06 | -22.27 | 33.44 | 30.36 | 231.15 | 0.6027 | 577.0 | 439.4 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -24.29 | 33.57 | 30.48 | 228.50 | 0.6196 | -758.0 | -565.8 | |
| 1.90 | 2.62 | 1.16 | 1.61 | -21.75 | 32.60 | 29.51 | 231.18 | 0.5895 | -767.7 | -694.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -24.33 | 33.11 | 30.03 | 228.07 | 0.6152 | -659.0 | -545.3 | |
| 0.00 | 2.08 | 0.00 | 1.30 | -23.83 | 32.83 | 29.75 | 228.49 | 0.6083 | 149.0 | 156.1 | |
| 0.00 | 4.34 | 0.00 | 2.65 | -21.71 | 32.29 | 29.20 | 230.96 | 0.5858 | -794.0 | -755.4 | |
| 0.00 | 4.97 | 0.00 | 3.04 | -22.17 | 32.24 | 29.16 | 230.26 | 0.5889 | -835.0 | -776.4 | |
| 2.08 | -22.00 | 1.29 | -22.00 | -23.46 | 32.51 | 29.42 | 228.71 | 0.6020 | -431.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -23.99 | 32.56 | 29.48 | 228.04 | 0.6069 | -471.0 | -371.2 | |
| 0.00 | 3.62 | 0.00 | 2.22 | -22.47 | 32.16 | 29.07 | 229.77 | 0.5904 | -842.0 | -809.8 | |
| 0.00 | 2.71 | 0.00 | 1.66 | -22.31 | 31.97 | 28.89 | 229.84 | 0.5870 | -836.0 | -730.9 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -22.70 | 32.02 | 28.94 | 229.33 | 0.5908 | -809.0 | -752.5 | |
| 0.00 | 4.34 | 0.00 | 2.69 | -23.76 | 32.24 | 29.16 | 228.06 | 0.6016 | -573.0 | -498.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -22.11 | 31.81 | 28.73 | 229.97 | 0.5837 | -739.0 | -610.3 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -22.90 | 31.88 | 28.80 | 228.92 | 0.5908 | -436.0 | -348.0 | |
| 0.00 | 3.17 | 0.00 | 1.94 | -22.77 | 31.77 | 28.69 | 229.01 | 0.5886 | -534.0 | -575.9 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -21.72 | 31.46 | 28.38 | 230.22 | 0.5768 | -820.0 | -574.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -22.34 | 30.26 | 27.18 | 228.20 | 0.5688 | -803.0 | -707.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -22.70 | 28.06 | 24.98 | 225.44 | 0.5488 | -476.0 | -428.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
