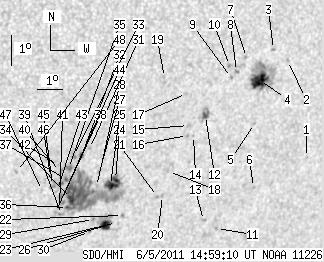

SDO HMI 2011-06-05 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.58 | 282.38 | 28.39 | 178.51 | -22.02 | 34.83 | 32.30 | 232.93 | 0.6232 | 80.2 | -86.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.62 | -21.84 | 41.62 | 39.08 | 237.70 | 0.6946 | 546.0 | 400.4 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -18.69 | 39.91 | 37.38 | 241.03 | 0.6596 | -219.0 | -241.8 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -18.34 | 39.25 | 36.72 | 241.16 | 0.6502 | -646.0 | -448.9 | |
| 15.46 | 52.27 | 10.08 | 34.09 | -19.34 | 38.95 | 36.42 | 239.57 | 0.6519 | 996.9 | 350.1 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -20.73 | 39.12 | 36.59 | 237.75 | 0.6615 | 597.0 | 475.4 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -22.83 | 39.71 | 37.18 | 235.29 | 0.6799 | 422.0 | 322.8 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -18.60 | 38.24 | 35.71 | 240.21 | 0.6397 | -602.0 | -419.6 | |
| 0.00 | 1.90 | 0.00 | 1.22 | -19.05 | 37.96 | 35.43 | 239.39 | 0.6389 | 858.0 | 669.5 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -19.24 | 37.81 | 35.28 | 239.02 | 0.6382 | 781.0 | 613.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -18.86 | 37.63 | 35.10 | 239.47 | 0.6340 | 862.0 | 750.1 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -24.19 | 38.62 | 36.09 | 232.82 | 0.6768 | 749.0 | 627.0 | |
| 3.07 | 9.04 | 1.97 | 5.80 | -20.47 | 37.09 | 34.56 | 236.82 | 0.6372 | 707.4 | 586.3 | |
| 0.00 | 1.90 | 0.00 | 1.26 | -23.92 | 38.00 | 35.47 | 232.75 | 0.6687 | 637.0 | 475.9 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -21.12 | 36.79 | 34.26 | 235.70 | 0.6378 | 543.0 | 469.1 | |
| 0.00 | 2.08 | 0.00 | 1.33 | -20.80 | 36.50 | 33.97 | 235.96 | 0.6326 | 653.0 | 484.1 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -21.12 | 36.55 | 34.02 | 235.54 | 0.6352 | 575.0 | 524.4 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -19.76 | 36.17 | 33.64 | 237.21 | 0.6224 | 486.0 | 417.0 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -22.30 | 36.12 | 33.58 | 233.60 | 0.6381 | 615.0 | 485.7 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -19.24 | 35.20 | 32.67 | 237.29 | 0.6079 | -644.0 | -507.1 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -23.09 | 36.10 | 33.57 | 232.52 | 0.6432 | 641.0 | 502.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -23.13 | 35.91 | 33.38 | 232.33 | 0.6414 | 664.0 | 552.9 | |
| 0.00 | 1.81 | 0.00 | 1.16 | -23.76 | 34.70 | 32.17 | 230.58 | 0.6331 | -675.0 | -505.8 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -23.99 | 34.53 | 32.00 | 230.13 | 0.6331 | -305.0 | -341.2 | |
| 2.53 | 139.72 | 1.59 | 87.32 | -22.57 | 34.11 | 31.58 | 231.73 | 0.6182 | 817.9 | -187.0 | |
| 6.51 | -24.00 | 4.09 | -24.00 | -22.76 | 33.97 | 31.44 | 231.34 | 0.6181 | 852.6 | 999999 | |
| 7.69 | 17.18 | 4.89 | 10.92 | -24.09 | 34.13 | 31.60 | 229.68 | 0.6296 | -864.5 | -442.1 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -22.30 | 33.43 | 30.90 | 231.55 | 0.6089 | 602.0 | 512.8 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -22.80 | 33.44 | 30.91 | 230.87 | 0.6126 | 527.0 | 474.9 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -23.89 | 33.61 | 31.07 | 229.52 | 0.6227 | 407.0 | 312.6 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -24.29 | 33.56 | 31.03 | 228.95 | 0.6252 | -668.0 | -575.4 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -21.55 | 32.87 | 30.34 | 232.15 | 0.5971 | -577.0 | -519.4 | |
| 1.90 | 2.53 | 1.17 | 1.56 | -21.78 | 32.62 | 30.09 | 231.62 | 0.5960 | -728.9 | -646.3 | |
| 0.00 | 3.71 | 0.00 | 2.28 | -21.78 | 32.31 | 29.78 | 231.36 | 0.5927 | -829.0 | -769.9 | |
| 4.79 | -24.00 | 2.98 | -24.00 | -23.19 | 32.58 | 30.05 | 229.61 | 0.6065 | -894.7 | 999999 | |
| 0.00 | 3.71 | 0.00 | 2.28 | -22.21 | 32.22 | 29.69 | 230.68 | 0.5950 | -908.0 | -793.5 | |
| 1.18 | -24.00 | 0.73 | -24.00 | -23.49 | 32.50 | 29.97 | 229.13 | 0.6080 | -495.1 | 999999 | |
| 1.45 | -24.00 | 0.89 | -24.00 | -22.57 | 32.23 | 29.70 | 230.18 | 0.5979 | -940.9 | 999999 | |
| 0.00 | 5.34 | 0.00 | 3.31 | -23.23 | 32.20 | 29.67 | 229.24 | 0.6028 | -556.0 | -598.0 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -23.73 | 32.33 | 29.80 | 228.67 | 0.6080 | -586.0 | -499.7 | |
| 0.00 | 2.80 | 0.00 | 1.72 | -22.30 | 31.94 | 29.41 | 230.30 | 0.5927 | -762.0 | -728.6 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -23.49 | 32.19 | 29.66 | 228.87 | 0.6048 | -504.0 | -435.3 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -22.11 | 31.82 | 29.29 | 230.47 | 0.5899 | -752.0 | -584.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -22.90 | 31.97 | 29.44 | 229.49 | 0.5977 | -444.0 | -427.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -23.66 | 32.08 | 29.55 | 228.54 | 0.6049 | -680.0 | -583.2 | |
| 0.00 | 4.07 | 0.00 | 2.50 | -22.77 | 31.75 | 29.22 | 229.48 | 0.5943 | -549.0 | -584.0 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -22.47 | 31.60 | 29.07 | 229.77 | 0.5904 | -776.0 | -636.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -22.93 | 31.41 | 28.88 | 228.95 | 0.5920 | -519.0 | -418.3 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -22.31 | 30.29 | 27.76 | 228.81 | 0.5749 | -842.0 | -666.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
