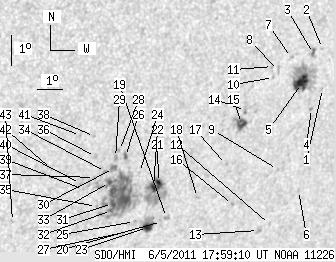

SDO HMI 2011-06-05 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.22 | 296.24 | 27.52 | 190.81 | -22.14 | 34.59 | 33.73 | 233.80 | 0.6396 | 45.7 | -106.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.43 | -19.55 | 39.92 | 39.05 | 240.73 | 0.6828 | -377.0 | -307.6 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -18.27 | 39.56 | 38.69 | 242.32 | 0.6727 | -528.0 | -398.9 | |
| 0.00 | 3.44 | 0.00 | 2.29 | -18.43 | 39.24 | 38.37 | 241.93 | 0.6697 | -185.0 | -64.6 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -20.20 | 39.65 | 38.78 | 239.71 | 0.6830 | 560.0 | 486.8 | |
| 14.56 | 49.82 | 9.71 | 33.23 | -19.39 | 39.00 | 38.14 | 240.47 | 0.6718 | 945.3 | 393.1 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -22.88 | 39.96 | 39.09 | 236.34 | 0.7003 | 537.0 | 378.6 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -18.56 | 38.37 | 37.50 | 241.28 | 0.6604 | -561.0 | -388.4 | |
| 0.00 | 2.53 | 0.00 | 1.66 | -18.98 | 37.95 | 37.09 | 240.46 | 0.6577 | 605.0 | 501.4 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -22.19 | 38.85 | 37.98 | 236.60 | 0.6848 | 413.0 | 446.4 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -19.20 | 37.81 | 36.94 | 240.07 | 0.6572 | 737.0 | 579.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -18.85 | 37.68 | 36.81 | 240.49 | 0.6539 | 797.0 | 715.6 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -24.01 | 39.12 | 38.25 | 234.40 | 0.6979 | 552.0 | 435.1 | |
| 0.00 | 3.44 | 0.00 | 2.36 | -24.21 | 38.73 | 37.86 | 233.90 | 0.6950 | 646.0 | 479.9 | |
| 0.00 | 2.80 | 0.00 | 1.83 | -20.27 | 36.97 | 36.10 | 238.08 | 0.6535 | 693.0 | 512.8 | |
| 7.41 | 11.57 | 4.85 | 7.57 | -20.69 | 36.92 | 36.05 | 237.46 | 0.6554 | 709.5 | 610.2 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -23.35 | 37.35 | 36.48 | 234.16 | 0.6757 | 773.0 | 574.6 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -22.03 | 36.70 | 35.83 | 235.49 | 0.6608 | 481.0 | 400.9 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -23.12 | 35.85 | 34.98 | 233.47 | 0.6584 | 694.0 | 557.9 | |
| 0.00 | 3.26 | 0.00 | 2.12 | -23.78 | 34.80 | 33.93 | 231.85 | 0.6517 | -600.0 | -438.0 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -23.91 | 34.63 | 33.77 | 231.56 | 0.6510 | -515.0 | -455.5 | |
| 1.63 | 39.79 | 1.04 | 25.57 | -22.62 | 34.15 | 33.28 | 232.93 | 0.6370 | 857.3 | 198.5 | |
| 3.07 | -21.00 | 1.97 | -21.00 | -22.79 | 33.99 | 33.12 | 232.60 | 0.6365 | 915.4 | 999999 | |
| 7.32 | 16.82 | 4.75 | 10.89 | -24.11 | 34.13 | 33.26 | 230.93 | 0.6471 | -807.6 | -398.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -22.29 | 33.31 | 32.44 | 232.77 | 0.6257 | 504.0 | 401.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -23.92 | 33.56 | 32.69 | 230.76 | 0.6397 | 419.0 | 214.2 | |
| 1.72 | 3.98 | 1.08 | 2.49 | -21.77 | 32.63 | 31.77 | 232.98 | 0.6146 | -717.1 | -321.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -24.28 | 33.23 | 32.36 | 230.02 | 0.6390 | -618.0 | -499.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -21.57 | 32.35 | 31.49 | 233.04 | 0.6101 | -744.0 | -661.2 | |
| 0.00 | 2.44 | 0.00 | 1.52 | -21.80 | 32.26 | 31.39 | 232.64 | 0.6107 | -896.0 | -767.5 | |
| 0.00 | 4.43 | 0.00 | 2.77 | -22.16 | 32.27 | 31.40 | 232.14 | 0.6134 | -827.0 | -747.8 | |
| 3.71 | 120.90 | 2.35 | 76.53 | -23.32 | 32.53 | 31.66 | 230.76 | 0.6246 | -862.5 | -362.1 | |
| 0.99 | -31.00 | 0.63 | -31.00 | -23.55 | 32.55 | 31.68 | 230.46 | 0.6266 | -537.4 | 999999 | |
| 1.81 | -31.00 | 1.14 | -31.00 | -22.62 | 32.23 | 31.36 | 231.47 | 0.6163 | -917.4 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.19 | -22.26 | 31.99 | 31.12 | 231.78 | 0.6110 | -888.0 | -746.9 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -23.42 | 31.93 | 31.06 | 230.15 | 0.6190 | -546.0 | -427.5 | |
| 0.00 | 1.99 | 0.00 | 1.23 | -21.77 | 31.48 | 30.62 | 232.06 | 0.6019 | -692.0 | -555.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -22.46 | 31.61 | 30.74 | 231.20 | 0.6084 | -761.0 | -646.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -21.12 | 31.29 | 30.43 | 232.84 | 0.5950 | -828.0 | -725.5 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -22.86 | 31.29 | 30.42 | 230.38 | 0.6079 | -684.0 | -557.3 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -22.66 | 31.13 | 30.26 | 230.52 | 0.6046 | -590.0 | -555.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -21.08 | 30.76 | 29.89 | 232.44 | 0.5887 | -703.0 | -545.1 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -22.20 | 29.92 | 29.05 | 230.12 | 0.5880 | -675.0 | -524.9 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -23.92 | 28.85 | 27.98 | 226.77 | 0.5908 | -676.0 | -518.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
