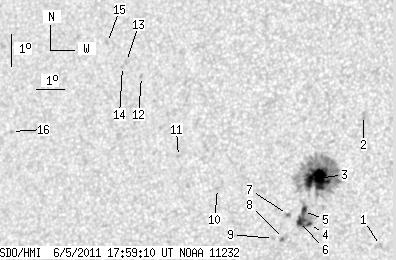

SDO HMI 2011-06-05 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.39 | 182.50 | 25.48 | 100.67 | 9.28 | 336.53 | -24.34 | 68.08 | 0.4401 | -690.6 | -248.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.07 | 7.25 | 339.26 | -21.61 | 70.58 | 0.3890 | -906.0 | -486.7 | |
| 0.00 | 2.89 | 0.00 | 1.58 | 11.26 | 338.43 | -22.44 | 62.15 | 0.4252 | -682.0 | -594.1 | |
| 36.35 | 135.28 | 19.96 | 74.31 | 9.32 | 337.03 | -23.84 | 67.60 | 0.4332 | -1190.4 | -366.8 | |
| 1.63 | 24.78 | 0.89 | 13.60 | 7.90 | 336.86 | -24.01 | 70.85 | 0.4285 | 789.7 | 14.2 | |
| 3.98 | -4.00 | 2.19 | -4.00 | 8.30 | 336.63 | -24.24 | 70.12 | 0.4338 | -796.4 | 999999 | |
| 4.07 | -4.00 | 2.24 | -4.00 | 8.00 | 336.51 | -24.36 | 70.88 | 0.4340 | -865.3 | 999999 | |
| 0.36 | 2.26 | 0.20 | 1.25 | 8.21 | 336.09 | -24.78 | 70.70 | 0.4413 | -860.8 | -605.4 | |
| 0.00 | 2.80 | 0.00 | 1.54 | 7.47 | 336.01 | -24.86 | 72.36 | 0.4393 | 862.0 | 518.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 7.47 | 335.67 | -25.20 | 72.57 | 0.4443 | -717.0 | -442.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 9.01 | 333.64 | -27.23 | 70.61 | 0.4811 | -664.0 | -574.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 10.00 | 332.18 | -28.69 | 69.57 | 0.5064 | 572.0 | 455.7 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 12.49 | 330.58 | -30.29 | 66.06 | 0.5408 | 733.0 | 595.3 | |
| 0.00 | 2.17 | 0.00 | 1.29 | 12.96 | 329.98 | -30.89 | 65.64 | 0.5514 | 683.0 | 581.8 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 12.80 | 329.85 | -31.02 | 65.98 | 0.5522 | 611.0 | 540.3 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 13.56 | 329.19 | -31.68 | 65.13 | 0.5648 | 711.0 | 500.9 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 10.79 | 326.01 | -34.86 | 71.36 | 0.5948 | 686.0 | 530.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
