SDO HMI 2011-06-05 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.15 | 11.75 | 3.00 | 6.89 | -19.31 | 26.70 | 26.39 | 231.98 | 0.5351 | 384.1 | 17.7 | |
|
previous
or next observation for the same group /

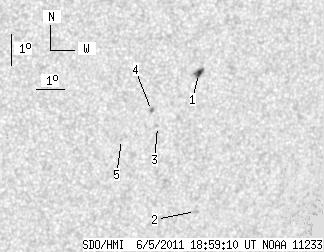

back to the solar disc SDO HMI 2011-06-05 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.70 | 6.15 | 2.74 | 3.58 | -17.95 | 27.00 | 26.69 | 234.39 | 0.5276 | 852.7 | 615.1 | |
| 0.00 | 2.35 | 0.00 | 1.42 | -22.43 | 27.74 | 27.42 | 228.30 | 0.5723 | -740.0 | -581.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -19.66 | 25.82 | 25.50 | 230.51 | 0.5275 | 655.0 | 486.1 | |
| 0.45 | 1.36 | 0.26 | 0.79 | -19.14 | 25.52 | 25.20 | 231.01 | 0.5196 | 820.8 | 684.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.08 | 24.60 | 24.29 | 228.57 | 0.5174 | -597.0 | -506.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
