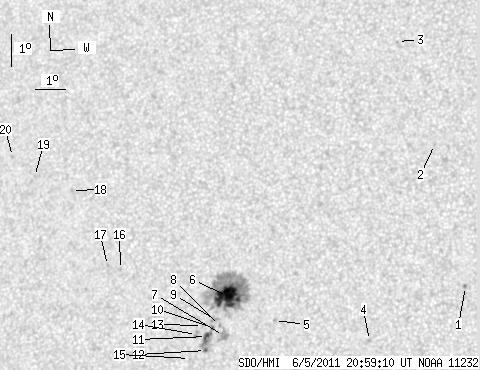

SDO HMI 2011-06-05 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.42 | 177.08 | 22.46 | 96.19 | 9.20 | 336.85 | -22.35 | 66.60 | 0.4109 | -553.9 | -261.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.70 | 9.60 | 344.73 | -14.47 | 55.53 | 0.3001 | 835.0 | 698.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 14.01 | 343.49 | -15.72 | 47.07 | 0.3605 | 717.0 | 574.6 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 17.27 | 342.00 | -17.21 | 43.35 | 0.4132 | 647.0 | 517.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 7.94 | 341.73 | -17.47 | 64.71 | 0.3303 | -821.0 | -599.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 8.56 | 338.61 | -20.59 | 66.51 | 0.3808 | 750.0 | 610.5 | |
| 35.00 | 128.96 | 18.98 | 69.97 | 9.30 | 337.01 | -22.19 | 66.27 | 0.4089 | -1209.2 | -387.9 | |
| 0.00 | 8.95 | 0.00 | 4.84 | 8.10 | 336.95 | -22.25 | 69.10 | 0.4029 | 211.0 | 55.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 8.40 | 336.80 | -22.40 | 68.50 | 0.4069 | -940.0 | -743.1 | |
| 0.00 | 3.44 | 0.00 | 1.87 | 8.59 | 336.63 | -22.58 | 68.22 | 0.4105 | -864.0 | -748.4 | |
| 0.54 | 17.91 | 0.29 | 9.72 | 8.34 | 336.57 | -22.63 | 68.83 | 0.4099 | -872.0 | 37.0 | |
| 4.43 | -10.00 | 2.41 | -10.00 | 8.07 | 336.39 | -22.81 | 69.62 | 0.4112 | -723.2 | 999999 | |
| 1.45 | -10.00 | 0.78 | -10.00 | 7.64 | 336.38 | -22.82 | 70.62 | 0.4092 | 672.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.41 | 336.24 | -22.97 | 68.96 | 0.4153 | -650.0 | -472.8 | |
| 0.00 | 2.98 | 0.00 | 1.63 | 8.13 | 336.05 | -23.15 | 69.74 | 0.4166 | -858.0 | -667.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 7.39 | 335.86 | -23.34 | 71.57 | 0.4159 | 632.0 | 504.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 10.14 | 333.33 | -25.87 | 67.47 | 0.4670 | 681.0 | 546.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 10.26 | 332.87 | -26.33 | 67.55 | 0.4742 | 840.0 | 659.9 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 12.59 | 331.37 | -27.83 | 64.21 | 0.5080 | 766.0 | 601.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 13.03 | 330.00 | -29.20 | 64.41 | 0.5291 | 773.0 | 615.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 13.66 | 329.12 | -30.08 | 63.93 | 0.5443 | 719.0 | 600.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
