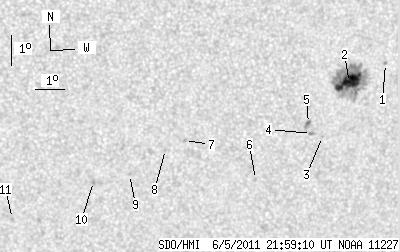

SDO HMI 2011-06-05 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.06 | 106.28 | 14.19 | 60.14 | -20.98 | 19.08 | 20.43 | 222.42 | 0.4857 | 651.0 | 404.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-05 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.87 | -20.07 | 20.79 | 22.14 | 226.07 | 0.4935 | 861.0 | 714.6 | |
| 23.79 | 90.35 | 13.47 | 51.19 | -20.68 | 19.62 | 20.97 | 223.65 | 0.4871 | 1107.6 | 459.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -22.45 | 18.94 | 20.29 | 220.17 | 0.4989 | 638.0 | 560.9 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -22.35 | 18.54 | 19.89 | 219.77 | 0.4939 | 764.0 | 659.0 | |
| 1.27 | 3.89 | 0.72 | 2.21 | -22.02 | 18.39 | 19.74 | 220.02 | 0.4888 | 884.9 | 722.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -23.87 | 16.80 | 18.16 | 215.29 | 0.4952 | 646.0 | 532.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -22.58 | 14.18 | 15.53 | 212.92 | 0.4568 | -678.0 | -516.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -22.88 | 13.56 | 14.92 | 211.53 | 0.4554 | -644.0 | -486.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -23.71 | 12.42 | 13.78 | 208.60 | 0.4573 | -696.0 | -563.4 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -23.94 | 11.22 | 12.57 | 206.24 | 0.4518 | -674.0 | -571.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -25.18 | 8.57 | 9.92 | 200.23 | 0.4529 | -676.0 | -577.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
