SDO HMI 2011-06-05 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.15 | 227.73 | 42.62 | 153.03 | -22.00 | 34.87 | 37.33 | 236.33 | 0.6779 | 5.1 | -32.9 | |
|
previous
or next observation for the same group /

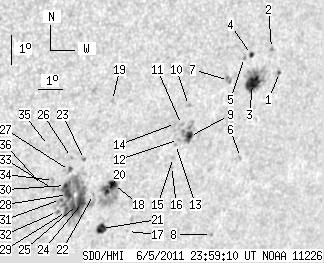

back to the solar disc SDO HMI 2011-06-05 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.09 | 3.44 | 0.77 | 2.44 | -19.01 | 40.08 | 42.54 | 243.10 | 0.7190 | -353.0 | -216.2 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -18.24 | 39.49 | 41.95 | 243.86 | 0.7095 | -352.0 | -343.3 | |
| 13.84 | 36.54 | 9.69 | 25.60 | -19.37 | 39.01 | 41.47 | 242.15 | 0.7089 | 877.3 | 506.8 | |
| 1.99 | 2.71 | 1.38 | 1.88 | -18.44 | 38.69 | 41.15 | 243.24 | 0.7014 | -394.7 | -294.0 | |
| 0.00 | 1.90 | 0.00 | 1.31 | -18.53 | 38.42 | 40.88 | 242.99 | 0.6988 | -271.0 | -259.2 | |
| 0.00 | 1.72 | 0.00 | 1.23 | -21.78 | 39.30 | 41.76 | 239.14 | 0.7227 | 445.0 | 416.6 | |
| 0.00 | 3.17 | 0.00 | 2.18 | -19.27 | 37.96 | 40.42 | 241.77 | 0.6969 | 731.0 | 660.9 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -24.32 | 38.98 | 41.44 | 235.76 | 0.7318 | 608.0 | 527.8 | |
| 5.16 | 13.75 | 3.54 | 9.41 | -21.09 | 36.86 | 39.32 | 238.79 | 0.6936 | 537.3 | 625.7 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -20.08 | 36.51 | 38.97 | 239.95 | 0.6848 | 691.0 | 644.8 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -20.70 | 36.41 | 38.87 | 239.06 | 0.6867 | 785.0 | 711.1 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -21.19 | 36.43 | 38.89 | 238.42 | 0.6895 | 740.0 | 627.9 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -21.35 | 36.36 | 38.82 | 238.16 | 0.6895 | 605.0 | 500.3 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -20.67 | 36.15 | 38.61 | 238.96 | 0.6837 | 694.0 | 578.2 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -21.78 | 36.41 | 38.87 | 237.63 | 0.6923 | 561.0 | 444.0 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -22.07 | 36.42 | 38.88 | 237.25 | 0.6940 | 546.0 | 419.1 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -24.22 | 35.29 | 37.75 | 233.79 | 0.6942 | -558.0 | -455.8 | |
| 5.07 | 32.84 | 3.39 | 21.97 | -22.67 | 34.19 | 36.65 | 235.14 | 0.6736 | 693.5 | 208.2 | |
| 0.00 | 1.99 | 0.00 | 1.29 | -19.92 | 33.36 | 35.82 | 238.36 | 0.6486 | -613.0 | -561.9 | |
| 1.54 | -18.00 | 1.03 | -18.00 | -22.93 | 33.98 | 36.45 | 234.66 | 0.6730 | 772.5 | 999999 | |
| 6.69 | 8.50 | 4.52 | 5.74 | -24.12 | 34.17 | 36.63 | 233.21 | 0.6822 | -681.1 | -521.7 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -23.00 | 33.47 | 35.93 | 234.24 | 0.6680 | 383.0 | 300.0 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -21.84 | 32.77 | 35.23 | 235.32 | 0.6533 | -724.0 | -657.5 | |
| 2.71 | 93.44 | 1.80 | 61.52 | -23.26 | 33.10 | 35.56 | 233.65 | 0.6658 | 355.7 | -396.2 | |
| 13.93 | -24.00 | 9.21 | -24.00 | -23.33 | 32.92 | 35.38 | 233.44 | 0.6642 | -383.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -21.78 | 32.23 | 34.69 | 235.05 | 0.6470 | -884.0 | -760.9 | |
| 0.00 | 3.08 | 0.00 | 2.00 | -22.20 | 32.27 | 34.73 | 234.50 | 0.6501 | -829.0 | -666.4 | |
| 4.70 | -24.00 | 3.08 | -24.00 | -23.00 | 32.42 | 34.88 | 233.53 | 0.6568 | -887.2 | 999999 | |
| 3.71 | -24.00 | 2.44 | -24.00 | -23.56 | 32.55 | 35.01 | 232.87 | 0.6618 | -642.7 | 999999 | |
| 1.63 | -24.00 | 1.06 | -24.00 | -22.70 | 32.25 | 34.71 | 233.82 | 0.6531 | -862.4 | 999999 | |
| 1.09 | -24.00 | 0.71 | -24.00 | -23.16 | 32.18 | 34.64 | 233.15 | 0.6554 | -638.8 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.42 | -23.56 | 32.18 | 34.64 | 232.62 | 0.6580 | -535.0 | -467.9 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -22.83 | 31.80 | 34.26 | 233.33 | 0.6492 | -645.0 | -583.5 | |
| 0.00 | 1.72 | 0.00 | 1.11 | -22.53 | 31.72 | 34.18 | 233.67 | 0.6464 | -727.0 | -656.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -21.39 | 31.21 | 33.67 | 234.89 | 0.6333 | -773.0 | -580.2 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -22.70 | 31.33 | 33.79 | 233.17 | 0.6432 | -638.0 | -479.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
