SDO HMI 2011-06-05 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.22 | 175.30 | 16.75 | 94.23 | 9.10 | 336.60 | -20.94 | 65.57 | 0.3892 | -681.5 | -386.3 | |
|
previous
or next observation for the same group /

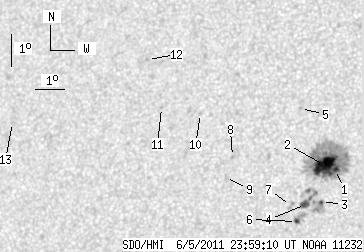

back to the solar disc SDO HMI 2011-06-05 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.81 | 130.26 | 0.97 | 69.88 | 9.19 | 337.31 | -20.23 | 64.65 | 0.3794 | -1322.7 | -472.1 | |
| 21.08 | -1.00 | 11.31 | -1.00 | 9.32 | 336.94 | -20.60 | 64.74 | 0.3856 | -1254.7 | 999999 | |
| 1.09 | 27.86 | 0.58 | 14.94 | 8.21 | 336.90 | -20.64 | 67.46 | 0.3793 | -761.2 | -299.8 | |
| 5.16 | -3.00 | 2.77 | -3.00 | 8.12 | 336.38 | -21.16 | 68.17 | 0.3866 | -733.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 11.08 | 336.02 | -21.52 | 61.66 | 0.4107 | -672.0 | -635.4 | |
| 2.08 | 6.78 | 1.12 | 3.64 | 7.59 | 336.11 | -21.43 | 69.67 | 0.3878 | 856.2 | 405.7 | |
| 0.00 | 2.53 | 0.00 | 1.36 | 8.09 | 335.89 | -21.65 | 68.67 | 0.3938 | -669.0 | -602.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 9.60 | 333.85 | -23.69 | 66.94 | 0.4323 | -630.0 | -535.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 8.95 | 333.66 | -23.88 | 68.50 | 0.4315 | -593.0 | -500.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 10.93 | 332.66 | -24.88 | 65.13 | 0.4572 | 644.0 | 427.1 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 11.12 | 331.30 | -26.24 | 65.83 | 0.4775 | 647.0 | 536.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 12.61 | 330.65 | -26.89 | 63.48 | 0.4952 | 849.0 | 701.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 10.66 | 326.07 | -31.47 | 70.00 | 0.5481 | 546.0 | 449.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
