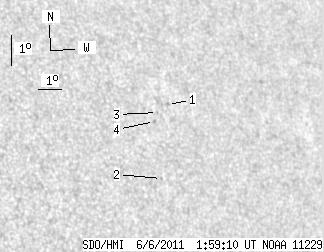

SDO HMI 2011-06-06 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.61 | 0.00 | 3.15 | 16.92 | 36.98 | 40.54 | 295.18 | 0.6895 | 623.0 | 537.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.06 | 17.58 | 37.43 | 40.99 | 295.88 | 0.6973 | 596.0 | 508.2 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 15.22 | 36.58 | 40.14 | 293.00 | 0.6781 | 534.0 | 442.2 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 17.32 | 36.93 | 40.50 | 295.75 | 0.6906 | 598.0 | 458.4 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 17.03 | 36.73 | 40.30 | 295.45 | 0.6871 | 764.0 | 697.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
