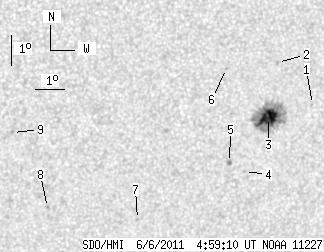

SDO HMI 2011-06-06 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.82 | 86.25 | 11.56 | 50.21 | -20.75 | 19.27 | 24.49 | 227.61 | 0.5268 | 742.2 | 445.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.59 | -20.21 | 21.15 | 26.37 | 230.45 | 0.5427 | 695.0 | 523.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -18.85 | 19.67 | 24.88 | 231.05 | 0.5140 | 795.0 | 558.2 | |
| 19.82 | 75.66 | 11.56 | 44.12 | -20.63 | 19.64 | 24.86 | 228.25 | 0.5294 | 1144.7 | 498.7 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -22.40 | 19.10 | 24.31 | 225.06 | 0.5398 | 680.0 | 569.7 | |
| 0.00 | 2.71 | 0.00 | 1.58 | -22.10 | 18.51 | 23.72 | 224.82 | 0.5308 | 942.0 | 636.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -19.05 | 17.90 | 23.11 | 228.78 | 0.4953 | -836.0 | -677.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.99 | 15.55 | 20.76 | 218.62 | 0.5208 | 724.0 | 536.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -23.59 | 12.31 | 17.53 | 214.68 | 0.4870 | -852.0 | -736.8 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -21.12 | 10.80 | 16.02 | 215.64 | 0.4436 | -863.0 | -656.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
