SDO HMI 2011-06-06 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.47 | 80.74 | 9.70 | 47.52 | -20.69 | 19.62 | 25.93 | 229.26 | 0.5420 | 981.1 | 530.4 | |
|
previous
or next observation for the same group /

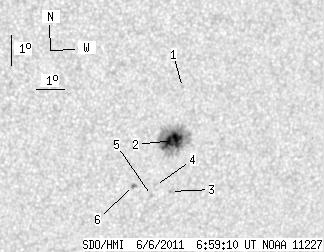

back to the solar disc SDO HMI 2011-06-06 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.69 | -18.91 | 19.68 | 25.99 | 232.08 | 0.5276 | 694.0 | 469.1 | |
| 16.02 | 74.85 | 9.43 | 44.04 | -20.62 | 19.66 | 25.97 | 229.40 | 0.5418 | 1166.5 | 529.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.29 | 19.87 | 26.18 | 227.18 | 0.5587 | 809.0 | 601.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -22.09 | 19.28 | 25.59 | 226.86 | 0.5507 | 353.0 | 230.3 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -22.42 | 19.20 | 25.51 | 226.30 | 0.5528 | 635.0 | 529.8 | |
| 0.45 | 2.44 | 0.27 | 1.44 | -22.09 | 18.48 | 24.79 | 226.01 | 0.5422 | 733.4 | 604.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
