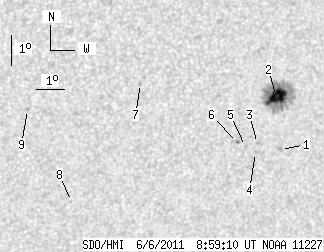

SDO HMI 2011-06-06 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.65 | 87.17 | 10.48 | 51.76 | -20.77 | 19.37 | 26.77 | 229.93 | 0.5522 | 718.3 | 432.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.26 | -22.35 | 20.12 | 27.52 | 228.40 | 0.5736 | 684.0 | 565.6 | |
| 17.65 | 77.29 | 10.48 | 45.93 | -20.61 | 19.62 | 27.02 | 230.45 | 0.5536 | 1157.4 | 468.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.15 | 19.23 | 26.63 | 227.82 | 0.5624 | 629.0 | 468.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -22.45 | 19.21 | 26.62 | 227.39 | 0.5648 | 597.0 | 448.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.25 | 18.80 | 26.21 | 227.26 | 0.5587 | 417.0 | 398.9 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -22.12 | 18.49 | 25.89 | 227.12 | 0.5541 | 774.0 | 674.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -20.19 | 14.68 | 22.09 | 225.71 | 0.4950 | -639.0 | -506.6 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -24.07 | 12.86 | 20.27 | 217.86 | 0.5174 | -573.0 | -458.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.03 | 10.88 | 18.29 | 219.29 | 0.4645 | -744.0 | -590.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
