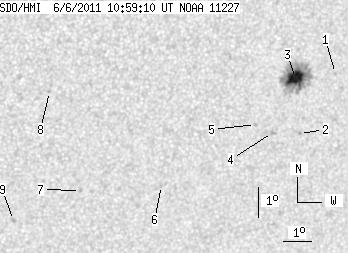

SDO HMI 2011-06-06 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.55 | 87.51 | 10.53 | 52.40 | -20.95 | 19.13 | 27.63 | 230.46 | 0.5641 | 750.8 | 416.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.44 | -20.44 | 21.11 | 29.61 | 233.02 | 0.5816 | 688.0 | 468.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -22.41 | 20.19 | 28.69 | 229.39 | 0.5867 | 741.0 | 675.5 | |
| 17.55 | 75.10 | 10.53 | 45.07 | -20.61 | 19.65 | 28.15 | 231.51 | 0.5664 | 1175.1 | 471.3 | |
| 0.00 | 2.90 | 0.00 | 1.75 | -22.37 | 19.17 | 27.67 | 228.50 | 0.5755 | 682.0 | 474.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -22.11 | 18.48 | 26.99 | 228.22 | 0.5659 | 832.0 | 614.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -24.13 | 15.45 | 23.95 | 222.24 | 0.5532 | 808.0 | 634.1 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -24.29 | 12.55 | 21.05 | 218.56 | 0.5272 | -666.0 | -491.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.03 | 10.96 | 19.46 | 220.97 | 0.4761 | -780.0 | -661.6 | |
| 0.00 | 2.08 | 0.00 | 1.20 | -25.30 | 10.33 | 18.83 | 214.38 | 0.5189 | -766.0 | -548.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
