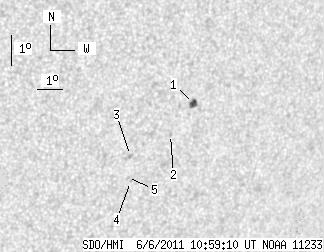

SDO HMI 2011-06-06 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.61 | 9.86 | 2.94 | 6.27 | -18.85 | 26.00 | 34.50 | 238.95 | 0.6280 | 191.7 | -188.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.61 | 5.34 | 2.94 | 3.41 | -18.00 | 26.80 | 35.30 | 240.71 | 0.6324 | 764.5 | 419.2 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -18.99 | 26.13 | 34.63 | 238.86 | 0.6301 | 625.0 | 578.4 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -19.67 | 24.73 | 33.23 | 236.94 | 0.6180 | -658.0 | -481.9 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -20.51 | 24.94 | 33.44 | 235.88 | 0.6257 | -478.0 | -450.4 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -20.38 | 24.79 | 33.29 | 235.96 | 0.6231 | -406.0 | -496.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
