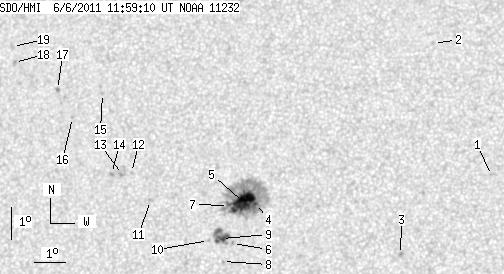

SDO HMI 2011-06-06 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.38 | 172.54 | 18.31 | 89.59 | 9.43 | 336.50 | -14.45 | 56.10 | 0.2977 | -548.7 | -334.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.41 | 10.15 | 344.68 | -6.27 | 31.25 | 0.2081 | 580.0 | 532.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.26 | 342.75 | -8.20 | 29.22 | 0.2845 | 756.0 | 520.6 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 7.72 | 341.91 | -9.04 | 49.05 | 0.2072 | -913.0 | -751.9 | |
| 0.90 | 132.73 | 0.47 | 68.71 | 9.29 | 337.34 | -13.61 | 55.05 | 0.2845 | -1209.8 | -421.6 | |
| 26.69 | -4.00 | 13.81 | -4.00 | 9.32 | 336.93 | -14.02 | 55.75 | 0.2906 | -1296.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.06 | 336.63 | -14.32 | 60.07 | 0.2839 | -952.0 | -720.6 | |
| 1.18 | -4.00 | 0.61 | -4.00 | 9.23 | 336.45 | -14.50 | 56.88 | 0.2963 | -732.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 7.51 | 336.33 | -14.62 | 62.28 | 0.2839 | 777.0 | 673.9 | |
| 6.61 | 17.46 | 3.42 | 9.04 | 8.21 | 336.27 | -14.68 | 60.19 | 0.2903 | -1070.5 | -829.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 8.15 | 335.86 | -15.09 | 61.04 | 0.2958 | -785.0 | -520.9 | |
| 0.00 | 1.90 | 0.00 | 1.00 | 9.39 | 333.95 | -17.00 | 60.40 | 0.3332 | -729.0 | -650.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 10.25 | 333.29 | -17.66 | 59.10 | 0.3495 | 761.0 | 639.4 | |
| 0.00 | 2.90 | 0.00 | 1.53 | 10.19 | 333.00 | -17.95 | 59.64 | 0.3531 | 930.0 | 779.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 10.22 | 332.64 | -18.31 | 60.04 | 0.3584 | 731.0 | 719.5 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 12.70 | 332.17 | -18.78 | 54.90 | 0.3854 | 723.0 | 539.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 11.96 | 331.24 | -19.71 | 57.78 | 0.3917 | 763.0 | 548.6 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 12.83 | 330.67 | -20.28 | 56.60 | 0.4065 | 843.0 | 683.7 | |
| 0.00 | 2.08 | 0.00 | 1.14 | 13.67 | 329.15 | -21.80 | 56.68 | 0.4335 | 792.0 | 619.3 | |
| 0.00 | 2.44 | 0.00 | 1.35 | 14.18 | 329.04 | -21.91 | 55.82 | 0.4392 | 688.0 | 534.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
