SDO HMI 2011-06-06 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.01 | 87.32 | 9.71 | 52.80 | -20.95 | 19.07 | 28.67 | 231.35 | 0.5759 | 650.8 | 396.1 | |
|
previous
or next observation for the same group /

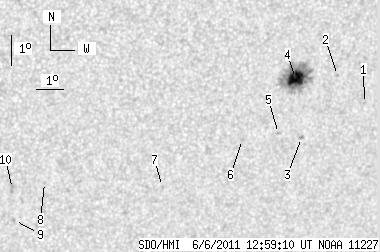

back to the solar disc SDO HMI 2011-06-06 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.68 | -21.38 | 22.42 | 32.02 | 233.60 | 0.6157 | -562.0 | -390.0 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -20.47 | 21.18 | 30.78 | 233.94 | 0.5952 | 712.0 | 554.9 | |
| 0.00 | 2.17 | 0.00 | 1.34 | -22.50 | 20.28 | 29.88 | 230.31 | 0.6004 | 709.0 | 625.3 | |
| 16.01 | 74.10 | 9.71 | 44.90 | -20.57 | 19.62 | 29.22 | 232.50 | 0.5782 | 1189.5 | 483.4 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -22.37 | 19.38 | 28.98 | 229.71 | 0.5896 | 699.0 | 529.2 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -22.56 | 18.08 | 27.68 | 228.23 | 0.5772 | 682.0 | 485.8 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -24.12 | 15.45 | 25.05 | 223.44 | 0.5641 | 522.0 | 601.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -23.99 | 11.15 | 20.75 | 218.58 | 0.5211 | -629.0 | -577.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -25.26 | 10.29 | 19.89 | 215.84 | 0.5276 | -732.0 | -586.8 | |
| 0.00 | 3.44 | 0.00 | 1.98 | -24.19 | 10.05 | 19.65 | 216.86 | 0.5132 | -774.0 | -631.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
