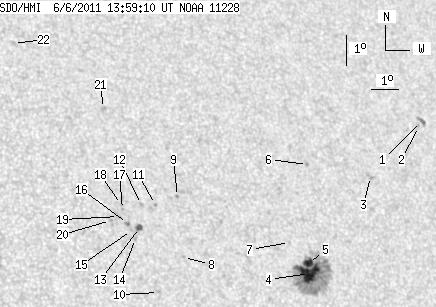

SDO HMI 2011-06-06 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.41 | 154.00 | 17.69 | 93.00 | 17.56 | 20.29 | 30.44 | 302.16 | 0.5727 | -253.2 | -261.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.52 | 0.00 | 3.01 | 21.72 | 26.49 | 36.65 | 303.76 | 0.6693 | -595.0 | -549.3 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 21.56 | 26.32 | 36.47 | 303.65 | 0.6664 | -658.0 | -659.0 | |
| 0.00 | 3.80 | 0.00 | 2.42 | 19.93 | 23.96 | 34.12 | 302.92 | 0.6304 | -555.0 | -547.2 | |
| 20.54 | 118.51 | 12.42 | 71.74 | 16.81 | 20.97 | 31.12 | 300.36 | 0.5756 | -1083.1 | -397.1 | |
| 5.52 | -4.00 | 3.34 | -4.00 | 17.13 | 20.99 | 31.15 | 300.84 | 0.5779 | -839.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 20.31 | 21.62 | 31.77 | 305.16 | 0.6062 | -677.0 | -578.2 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 17.80 | 20.41 | 30.56 | 302.32 | 0.5751 | -333.0 | -409.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 17.31 | 16.47 | 26.62 | 304.89 | 0.5236 | -658.0 | -655.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 19.27 | 16.58 | 26.73 | 307.91 | 0.5403 | 714.0 | 590.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 16.20 | 15.42 | 25.57 | 304.01 | 0.5020 | 45.0 | 120.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 19.01 | 15.75 | 25.90 | 308.33 | 0.5284 | 677.0 | 526.8 | |
| 0.00 | 1.99 | 0.00 | 1.15 | 19.01 | 15.25 | 25.40 | 308.83 | 0.5226 | 563.0 | 460.1 | |
| 3.35 | 4.07 | 1.93 | 2.35 | 18.27 | 15.06 | 25.21 | 307.84 | 0.5142 | 792.6 | 712.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 17.92 | 14.86 | 25.01 | 307.47 | 0.5089 | 774.0 | 571.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 18.18 | 14.76 | 24.91 | 308.00 | 0.5098 | 745.0 | 630.9 | |
| 0.00 | 2.44 | 0.00 | 1.41 | 18.40 | 14.65 | 24.80 | 308.47 | 0.5105 | 935.0 | 765.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 18.85 | 14.55 | 24.70 | 309.31 | 0.5131 | 859.0 | 706.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 19.01 | 14.54 | 24.69 | 309.58 | 0.5144 | 857.0 | 653.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 18.63 | 14.37 | 24.52 | 309.14 | 0.5091 | 803.0 | 743.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 18.50 | 14.07 | 24.22 | 309.26 | 0.5044 | 698.0 | 624.6 | |
| 0.00 | 2.80 | 0.00 | 1.65 | 22.13 | 14.43 | 24.58 | 314.41 | 0.5415 | 695.0 | 570.9 | |
| 0.00 | 2.44 | 0.00 | 1.43 | 24.29 | 11.58 | 21.74 | 320.67 | 0.5346 | 548.0 | 434.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
