SDO HMI 2011-06-06 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.34 | 0.00 | 3.48 | 22.44 | 2.87 | 13.02 | 331.47 | 0.4389 | 425.8 | 441.5 | |
|
previous
or next observation for the same group /

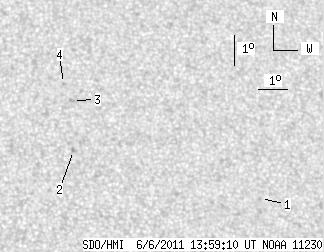

back to the solar disc SDO HMI 2011-06-06 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | 20.27 | 8.04 | 18.19 | 319.84 | 0.4560 | -602.0 | -553.7 | |
| 0.00 | 2.44 | 0.00 | 1.33 | 21.83 | 1.88 | 12.04 | 332.54 | 0.4216 | 884.0 | 687.5 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 23.48 | 2.00 | 12.15 | 334.19 | 0.4452 | 721.0 | 593.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 24.04 | 1.75 | 11.90 | 335.23 | 0.4513 | 700.0 | 558.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
