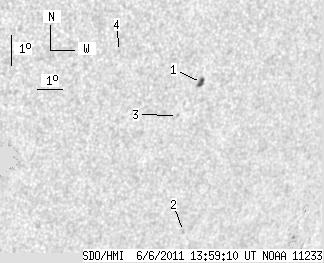

SDO HMI 2011-06-06 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.89 | 9.06 | 2.53 | 5.90 | -18.76 | 26.35 | 36.50 | 240.35 | 0.6505 | 170.8 | -26.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-06 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.89 | 5.43 | 2.53 | 3.54 | -18.02 | 26.78 | 36.94 | 241.61 | 0.6518 | 681.3 | 461.8 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -22.87 | 27.43 | 37.58 | 235.38 | 0.6852 | -669.0 | -505.1 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -19.08 | 26.09 | 36.24 | 239.71 | 0.6493 | 587.0 | 506.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -17.03 | 23.35 | 33.50 | 241.02 | 0.6055 | -697.0 | -524.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
